Product Specifications

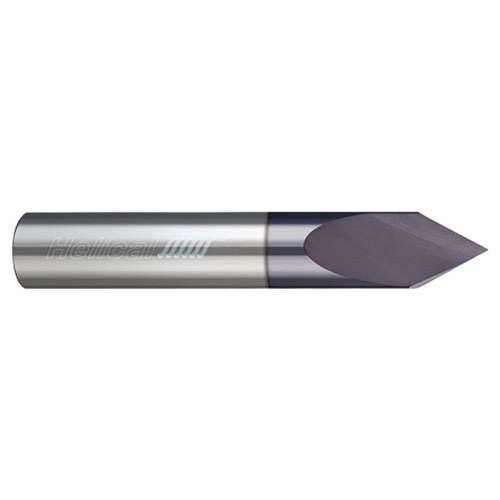

| Tool Description | HCM60-20375 |
| MIll Diameter (Inch) | 3/8" |
| MIll Diameter (Decimal Inch) | 0.3750" |
| Number of Flutes | 2 |
| Length of Cut (Decimal Inch) | 0.3240" |
| Material | Solid Carbide |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Finish/Coating | Aplus |
| Included Angle | 60 Degree |
| Center Cutting (Yes/No) | Yes |
| Tip (Decimal Inch) | 0.0350" |
| Web Thickness (Decimal Inch) | 0.0300" |
| Shank Length (Inch) | 2.1760" |
| Shank Length (Decimal Inch) | 2.1760" |
| Chip Breaker (Yes/No) | No |
| Metric (Yes/No) | No |
