Product Specifications

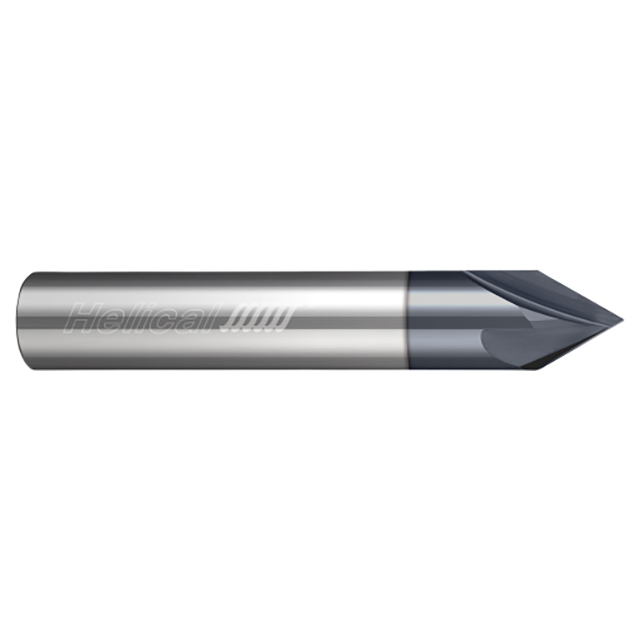

| Tool Description | HCM60-40250 |
| MIll Diameter (Inch) | 1/4" |
| MIll Diameter (Decimal Inch) | 0.2500" |
| Number of Flutes | 4 |
| Length of Cut (Decimal Inch) | 0.2160" |
| Material | Solid Carbide |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Finish/Coating | Aplus |
| Included Angle | 60 Degree |
| Center Cutting (Yes/No) | Yes |
| Tip (Decimal Inch) | 0.0200" |
| Web Thickness (Decimal Inch) | 0.0175" |
| Shank Length (Inch) | 2.2840" |
| Shank Length (Decimal Inch) | 2.2840" |
| Chip Breaker (Yes/No) | No |
| Metric (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Head Diameter (Inch):
1/4"
Cutter Head Diameter (Decimal Inch):
0.2500"
Included Angle:
60 Degree
Material:
Solid Carbide
Finish/Coating:
Aplus
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Number of Flutes:
4
End Type:
Single
Ships:
From Partner Facility
IsDiscontinued:
