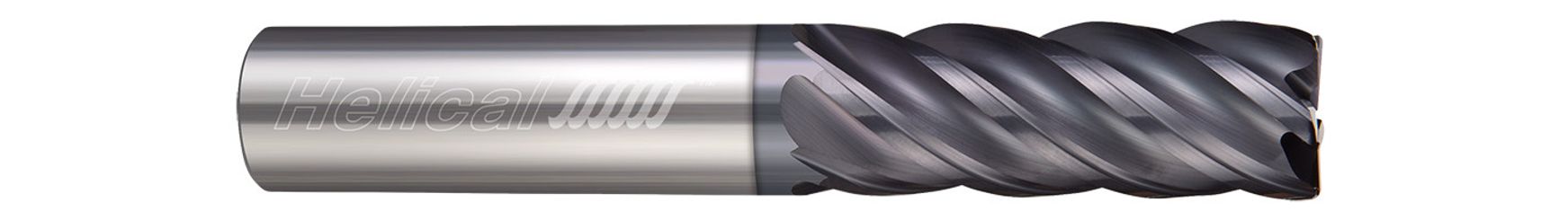

Helical Solutions 34397W | HEV-L-50750-R.030 3/4" Diameter x 3/4" Shank x 2-3/4" LOC x 5" OAL x 0.0300" Radius 5 Flute Aplus Coated Solid Carbide Corner Radius End Mill

$269.80
Brand:
Helical Solutions
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
5
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
2-3/4"
Length of Cut (Decimal Inch):
2.7500"
Length of Cut (mm):
69.85mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127mm
SKU:
25187751
Weight:
1.23 LBS
Shipping:
Free Shipping
34397W

The 5 flute design of the HEV-5 provides a significant lift in tool life and productivity, while increasing feed rates over 4-fluted tools. Its variable pitch geometry, high flute count, and Aplus coating make it excel in tough materials like steels, tool steels, cast iron, titanium, and titanium alloys.

  • Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, cast iron, titanium, and titanium alloys.
  • Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
  • 5 flute variable pitch design for reduced harmonics and increased feed rates
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.7500" (3/4)
Length of Cut (Inch)2.7500" (2-3/4)
Overall Length (Inch)5"
Corner Radius (Inch)0.0300"
No of Flutes5
Shank Diameter (Inch)0.7500" (3/4)
Finish/CoatingAPLUS
Center Cutting (Yes/No)Yes
