Product Specifications

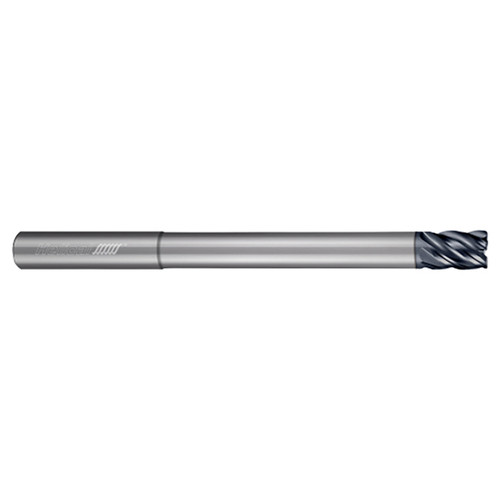

| Tool Description | HEV-RN-S-50750-R.030 |
| Mill Diameter (Inch) | 3/4" |
| Mill Diameter (Decimal Inch) | 0.7500" |
| Number of Flutes | 5 |
| Length of Cut (Inch) | 1" |
| Length of Cut (Decimal Inch) | 1.0000" |
| Material | Solid Carbide |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Finish/Coating | Aplus |
| Overall Reach (Inch) | 2" |
| Overall Reach (Decimal Inch) | 2.0000" |
| Center Cutting (Yes/No) | Yes |
| Application | Steels |
| Neck Diameter (Decimal Inch) | 0.7120" |
| Corner Radius (Decimal Inch) | 0.0300" |
| LOC Multiple | 1x |
| Reach Multiple | 2.5x |
| Shank Length (Inch) | 2" |
| Shank Length (Decimal Inch) | 2.0000" |
| Chip Breaker (Yes/No) | No |
| Metric (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Number of Flutes:
5
Corner Radius (Decimal Inch):
0.0300"
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Overall Reach (Inch):
2"
Overall Reach (Decimal Inch):
2.0000"
Material:
Solid Carbide
Finish/Coating:
APLUS
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Application:
Steels, High-Temp Alloys & Titanium
Single or Double End:
Single
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Ships:
From Partner Facility
