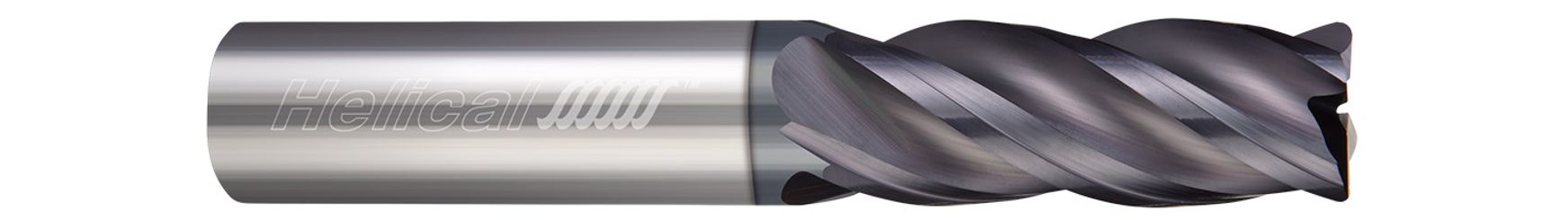

Helical Solutions 43332W | HSV-SR-40375-R.030 3/8" Diameter x 3/8" Shank x 7/8" LOC x 3" OAL x 0.0300" Radius 4 Flute Aplus Coated Solid Carbide Corner Radius End Mill

$63.50
Brand:
Helical Solutions
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
4
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
7/8"
Length of Cut (Decimal Inch):
0.8750"
Length of Cut (mm):
22.23mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
SKU:
25187852
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
43332W

The HSV-4's variable pitch geometry effectively decreases chatter and harmonics, allowing it to leave a better part finish and last longer in your spindle. Featuring eccentric relief for maximum edge strength and Aplus coating for improved performance in tough materials, this tool is a strong choice for a variety of applications.

  • Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
  • Engineered with eccentric relief for maximum edge strength in both roughing and finishing applications
  • Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.3750" (3/8)
Length of Cut (Inch)0.8750" (7/8)
Overall Length (Inch)3"
Corner Radius (Inch)0.0300"
No of Flutes4
Shank Diameter (Inch)0.3750" (3/8)
Finish/CoatingAPLUS
Center Cutting (Yes/No)Yes
