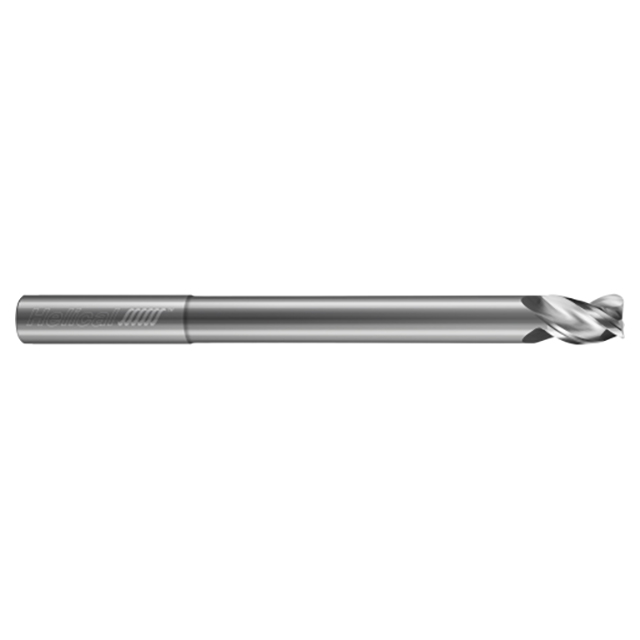

| Tool Description | H40ALV-RN-L-30750-R.125 |
| Mill Diameter (Inch) | 3/4" |
| Mill Diameter (Decimal Inch) | 0.7500" |
| Number of Flutes | 3 |
| Length of Cut (Inch) | 1" |
| Length of Cut (Decimal Inch) | 1.0000" |
| Material | Solid Carbide |
| Overall Length (Inch) | 7" |
| Overall Length (Decimal Inch) | 7.0000" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Finish/Coating | Uncoated |
| Overall Reach (Inch) | 5" |
| Overall Reach (Decimal Inch) | 5.0000" |
| Center Cutting (Yes/No) | Yes |
| Application | Aluminum |
| Neck Diameter (Decimal Inch) | 0.7120" |
| Corner Radius (Inch) | 1/8" |
| Corner Radius (Decimal Inch) | 0.1250" |
| LOC Multiple | 1x |
| Reach Multiple | 6x |
| Web Thickness (Decimal Inch) | 0.0120" |
| Shank Length (Inch) | 2" |
| Shank Length (Decimal Inch) | 2.0000" |
| Chip Breaker (Yes/No) | No |
| Metric (Yes/No) | No |
