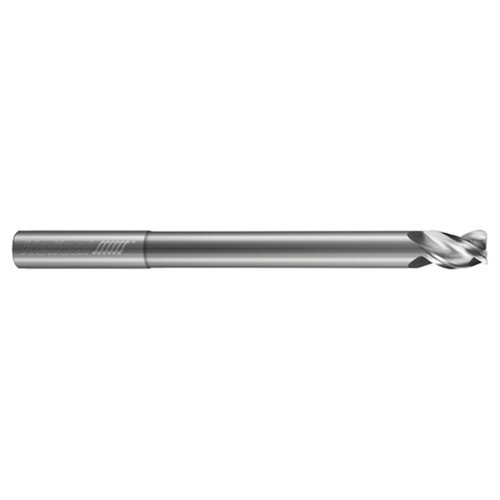

Helical Solutions 46820 | H40ALV-RN-LX-31000-R.125 1" Diameter x 1" Shank x 1-1/4" LOC x 6" Reach x 9" OAL x 0.1250" Corner Radius 3 Flute Uncoated Solid Carbide Reduced Neck End Mill For Aluminum

$459.00
Ships:
From Partner Facility
Brand:
Helical Solutions
Mill Diameter (Inch):
1"
Mill Diameter (Decimal Inch):
1.0000"
Number of Flutes:
3
Corner Radius (Inch):
1/8"
Corner Radius (Decimal Inch):
0.1250"
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Overall Reach (Inch):
6"
Overall Reach (Decimal Inch):
6.0000"
Material:
Solid Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Application:
Aluminum
Single or Double End:
Single
Overall Length (Inch):
9"
Overall Length (Decimal Inch):
9.0000"
Ships:
From Partner Facility
SKU:
25102424
UPC:
Weight:
3.25 LBS
Shipping:
Free Shipping
Product Specifications
Tool Description H40ALV-RN-LX-31000-R.125
Mill Diameter (Inch) 1"
Mill Diameter (Decimal Inch) 1.0000"
Number of Flutes 3
Length of Cut (Inch) 1-1/4"
Length of Cut (Decimal Inch) 1.2500"
Material Solid Carbide
Overall Length (Inch) 9"
Overall Length (Decimal Inch) 9.0000"
Shank Diameter (Inch) 1"
Shank Diameter (Decimal Inch) 1.0000"
Finish/Coating Uncoated
Overall Reach (Inch) 6"
Overall Reach (Decimal Inch) 6.0000"
Center Cutting (Yes/No) Yes
Application Aluminum
Neck Diameter (Decimal Inch) 0.9500"
Corner Radius (Inch) 1/8"
Corner Radius (Decimal Inch) 0.1250"
LOC Multiple 1x
Reach Multiple 6x
Web Thickness (Decimal Inch) 0.0120"
Shank Length (Inch) 3"
Shank Length (Decimal Inch) 3.0000"
Chip Breaker (Yes/No) No
Metric (Yes/No) No
