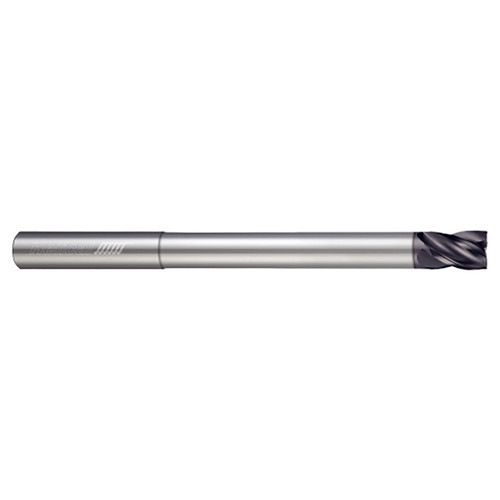

Helical Solutions 50332 | HEV-RN-M-50625 5/8" Diameter x 5/8" Shank x 3/4" LOC x 3-3/8" Reach x 6" OAL 5 Flute Single End Aplus Coated Solid Carbide Reduced Neck Square End Mill

$266.00
Ships:
From Partner Facility
Brand:
Helical Solutions
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6250"
Number of Flutes:
5
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Overall Reach (Inch):
3-3/8"
Overall Reach (Decimal Inch):
3.3750"
Material:
Solid Carbide
Finish/Coating:
APLUS
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Application:
Steels
Single or Double End:
Single
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Ships:
From Partner Facility
SKU:
25101367
UPC:
Weight:
0.65 LBS
Shipping:
Free Shipping
Product Specifications
Tool Description HEV-RN-M-50625
Mill Diameter (Inch) 5/8"
Mill Diameter (Decimal Inch) 0.6250"
Number of Flutes 5
Length of Cut (Inch) 3/4"
Length of Cut (Decimal Inch) 0.7500"
Material Solid Carbide
Overall Length (Inch) 6"
Overall Length (Decimal Inch) 6.0000"
Shank Diameter (Inch) 5/8"
Shank Diameter (Decimal Inch) 0.6250"
Finish/Coating Aplus
Overall Reach (Inch) 3-3/8"
Overall Reach (Decimal Inch) 3.3750"
Center Cutting (Yes/No) Yes
Application Steels
Neck Diameter 19/32"
Neck Diameter (Decimal Inch) 0.5930"
LOC Multiple 1x
Reach Multiple 6x
Shank Length (Inch) 2-5/8"
Shank Length (Decimal Inch) 2.6250"
Chip Breaker (Yes/No) No
Metric (Yes/No) No
