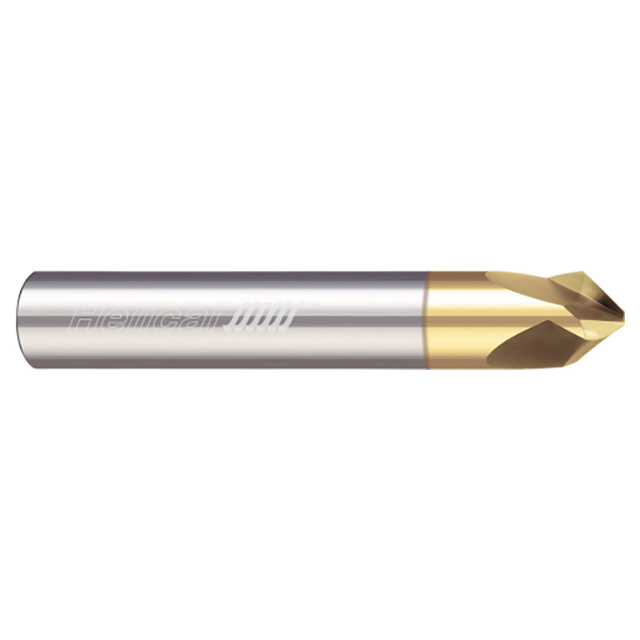

Helical Solutions 59820 | HPCM90-30250 1/4" Cutter Head Diameter x 1/4" Shank x 2-1/2" OAL x 90 Degree Included Angle 3 Flute Zplus Coated Solid Carbide Chamfer Mill

About This Item

Product Specifications

Tool Description	HPCM90-30250
MIll Diameter (Inch)	1/4"
MIll Diameter (Decimal Inch)	0.2500"
Number of Flutes	3
Length of Cut (Decimal Inch)	0.0950"
Material	Solid Carbide
Overall Length (Inch)	2-1/2"
Overall Length (Decimal Inch)	2.5000"
Shank Diameter (Inch)	1/4"
Shank Diameter (Decimal Inch)	0.2500"
Finish/Coating	Zplus
Included Angle	90 Degree
Center Cutting (Yes/No)	No
Tip (Decimal Inch)	0.0600"
Shank Length (Inch)	2.4050"
Shank Length (Decimal Inch)	2.4050"
Chip Breaker (Yes/No)	No
Metric (Yes/No)	No
