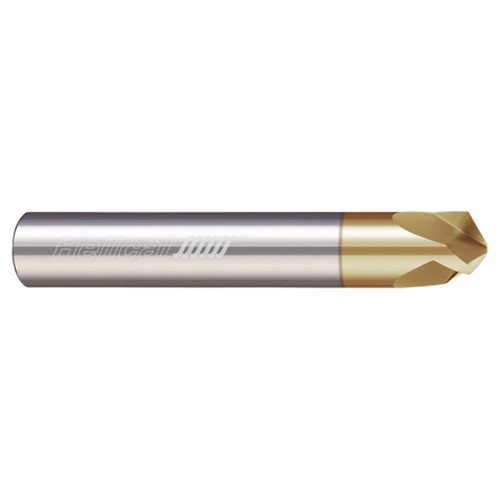

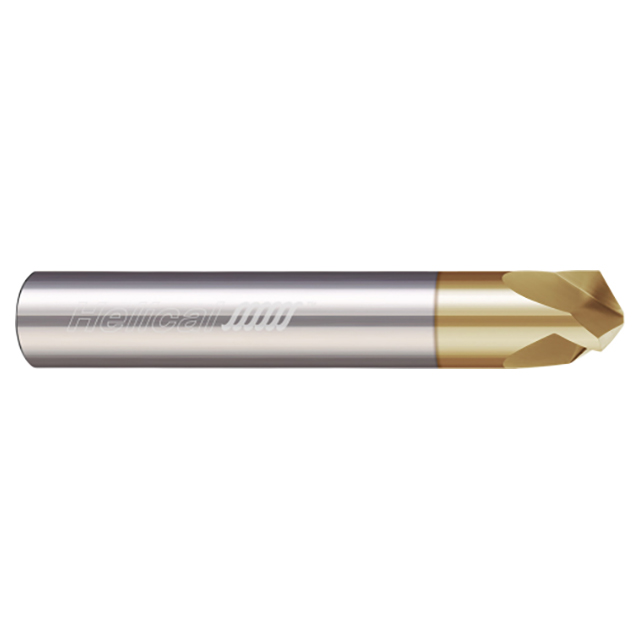

Helical Solutions 59831 | HPCM120-30625 5/8" Cutter Head Diameter x 5/8" Shank x 3" OAL x 120 Degree Included Angle 3 Flute Zplus Coated Solid Carbide Chamfer Mill

About This Item

Product Specifications

Tool Description	HPCM120-30625
MIll Diameter (Inch)	5/8"
MIll Diameter (Decimal Inch)	0.6250"
Number of Flutes	3
Length of Cut (Decimal Inch)	0.1570"
Material	Solid Carbide
Overall Length (Inch)	3"
Overall Length (Decimal Inch)	3.0000"
Shank Diameter (Inch)	5/8"
Shank Diameter (Decimal Inch)	0.6250"
Finish/Coating	Zplus
Included Angle	120 Degree
Center Cutting (Yes/No)	No
Tip (Decimal Inch)	0.0900"
Shank Length (Inch)	2-27/32"
Shank Length (Decimal Inch)	2.8430"
Chip Breaker (Yes/No)	No
Metric (Yes/No)	No
