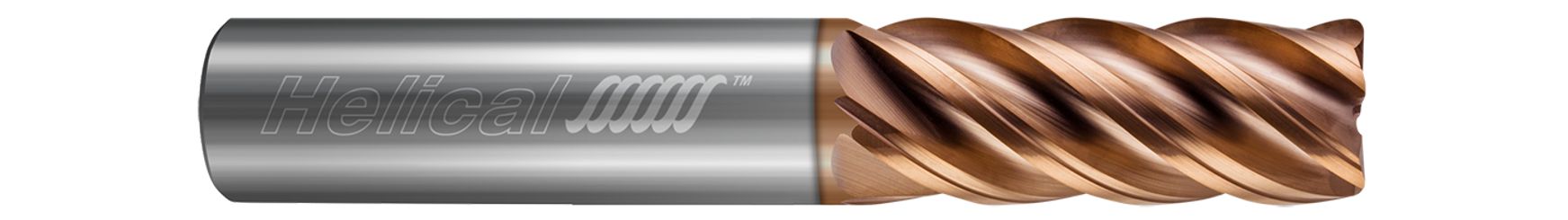

Helical Solutions 59870W | HEV-R-50375-R.030 3/8" Diameter x 3/8" Shank x 1" LOC x 3" OAL x 0.0300" Radius 5 Flute Tplus Coated Solid Carbide Corner Radius End Mill

$73.50
Brand:
Helical Solutions
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
5
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Finish/Coating:
Tplus
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
SKU:
25188309
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
59870W

Corner radius profile, 5 flute variable pitch end mill engineered to reduce harmonics and increase feed rates, and intended to provide outstanding performance and high temperature resistance in a wide range of ferrous materials.

  • Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc
  • Well-suited for increased wear resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
  • Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
  • 5 flute variable pitch design for reduced harmonics and increased feed rates
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.3750" (3/8)
Length of Cut (Inch)1"
Overall Length (Inch)3"
Corner Radius (Inch)0.0300"
No of Flutes5
Shank Diameter (Inch)0.3750" (3/8)
Finish/CoatingTPLUS
Center Cutting (Yes/No)Yes

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Helical Solutions
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
5
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Finish/Coating:
Tplus
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
