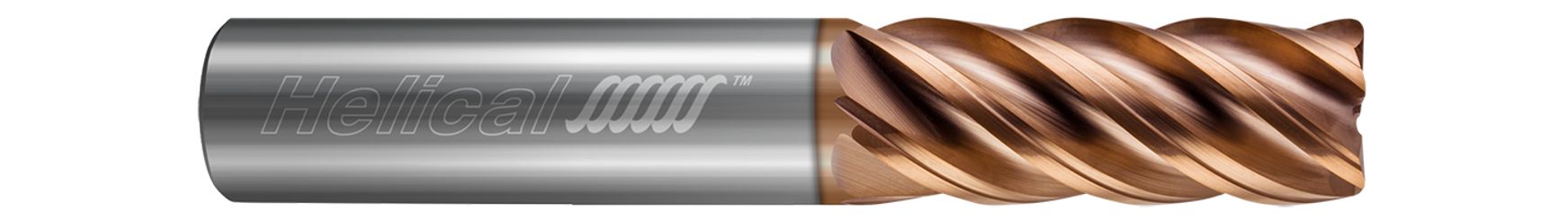

Helical Solutions 59882W | HEV-M-50500-R.060 1/2" Diameter x 1/2" Shank x 1-5/8" LOC x 4" OAL x 0.0600" Radius 5 Flute Tplus Coated Solid Carbide Corner Radius End Mill

$120.20
Brand:
Helical Solutions
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.7mm
Number of Flutes:
5
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Finish/Coating:
Tplus
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.7mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
SKU:
25188258
Weight:
1.23 LBS
Shipping:
Free Shipping
59882W

Corner radius profile, 5 flute variable pitch end mill engineered to reduce harmonics and increase feed rates, and intended to provide outstanding performance and high temperature resistance in a wide range of ferrous materials.

  • Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc
  • Well-suited for increased wear resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
  • Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
  • 5 flute variable pitch design for reduced harmonics and increased feed rates
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.5000" (1/2)
Length of Cut (Inch)1.6250" (1-5/8)
Overall Length (Inch)4"
Corner Radius (Inch)0.0600"
No of Flutes5
Shank Diameter (Inch)0.5000" (1/2)
Finish/CoatingTPLUS
Center Cutting (Yes/No)Yes
