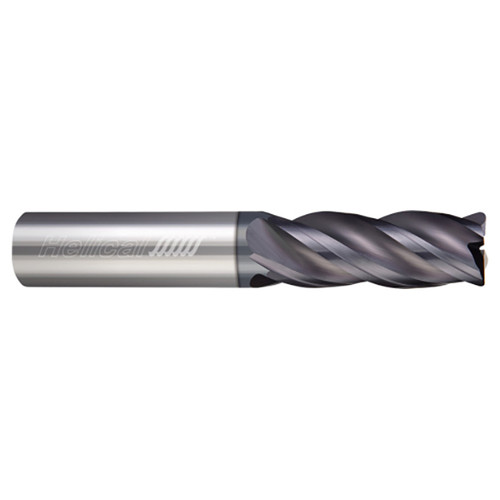

Helical Solutions 81649 | HSV-A-40125-R.010 1/8" Diameter x 1/8" Shank x 5/8" LOC x 2-1/2" OAL x 0.010" Corner Radius 4 Flute Aplus Coated Solid Carbide Corner Radius End Mill For Steels, High-Temp Alloys & Titanium

About This Item

Product Specifications

Tool Description	HSV-A-40125-R.010
Mill Diameter (Inch)	1/8"
Mill Diameter (Decimal Inch)	0.1250"
Number of Flutes	4
Length of Cut (Inch)	5/8"
Length of Cut (Decimal Inch)	0.6250"
Material	Solid Carbide
Overall Length (Inch)	2-1/2"
Overall Length (Decimal Inch)	2.5000"
Shank Diameter (Inch)	1/8"
Shank Diameter (Decimal Inch)	0.1250"
Finish/Coating	Aplus
Center Cutting (Yes/No)	Yes
Application	Steels
Corner Radius (Decimal Inch)	0.0100"
LOC Multiple	5x
Shank Length (Inch)	1-7/8"
Shank Length (Decimal Inch)	1.8750"
Chip Breaker (Yes/No)	No
Weldon Flat (Yes/No)	No
Metric (Yes/No)	No
Coolant Through (Yes/No)	No
