Product Specifications

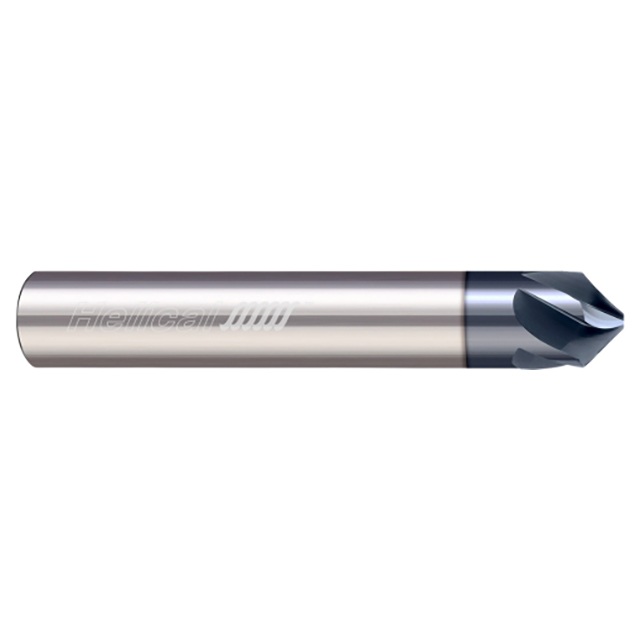

| Tool Description | HPCM90-50375 |
| MIll Diameter (Inch) | 3/8" |
| MIll Diameter (Decimal Inch) | 0.3750" |
| Number of Flutes | 5 |
| Length of Cut (Decimal Inch) | 0.1530" |
| Material | Solid Carbide |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Finish/Coating | Aplus |
| Included Angle | 90 Degree |
| Center Cutting (Yes/No) | No |
| Tip (Decimal Inch) | 0.0700" |
| LOC Multiple | 0x |
| Shank Length (Inch) | 3.8470" |
| Shank Length (Decimal Inch) | 3.8470" |
| Chip Breaker (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Metric (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Head Diameter (Inch):
3/8"
Cutter Head Diameter (Decimal Inch):
0.3750"
Included Angle:
90 Degree
Material:
Solid Carbide
Finish/Coating:
Aplus
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Number of Flutes:
5
End Type:
Single
Ships:
From Partner Facility
IsDiscontinued:
