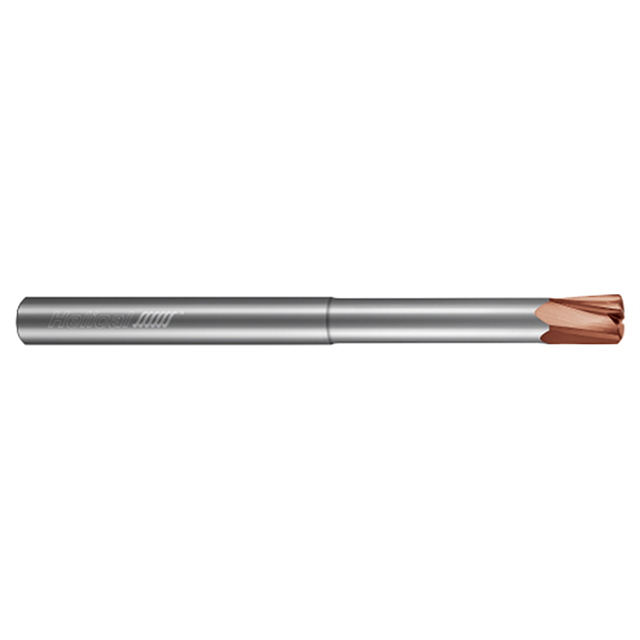

Helical Solutions 82665 | HFV-RN-060-40125 1/8" Diameter x 1/8" Shank x 1/8" LOC x 3/4" Reach x 2" OAL 4 Flute Tplus Coated Solid Carbide Reduced Neck High-Feed End Mill

About This Item

Product Specifications

Tool Description	HFV-RN-060-40125
Mill Diameter (Inch)	1/8"
Mill Diameter (Decimal Inch)	0.1250"
Number of Flutes	4
Length of Cut (Inch)	1/8"
Length of Cut (Decimal Inch)	0.1250"
Material	Solid Carbide
Overall Length (Inch)	2"
Overall Length (Decimal Inch)	2.0000"
Shank Diameter (Inch)	1/8"
Shank Diameter (Decimal Inch)	0.1250"
Finish/Coating	Tplus
Overall Reach (Inch)	3/4"
Overall Reach (Decimal Inch)	0.7500"
Center Cutting (Yes/No)	No
Application	Steels up to 45 Rc
Neck Diameter (Decimal Inch)	0.1100"
Corner Radius (Decimal Inch)	0.0100"
Theoretical Radius (Decimal Inch)	0.0157"
LOC Multiple	1x
Reach Multiple	6x
Shank Length (Inch)	1-1/4"
Shank Length (Decimal Inch)	1.2500"
Chip Breaker (Yes/No)	No
Weldon Flat (Yes/No)	No
Metric (Yes/No)	No
Coolant Through (Yes/No)	No
