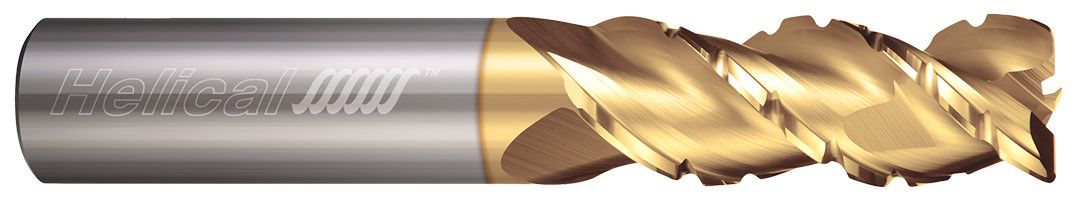

Helical Solutions 82749 |H45AL-C-L-30750-R.060 0.7500" (3/4) Cutter DIA x 0.7500" (3/4) Shank DIA x 0.0600" Radius x 3.2500" (3-1/4) Length of Cut x 6.0000" (6) Overall Length Carbide 45° Helix Corner Radius End Mill for Aluminum, 3 Flutes, Uncoated - (H45AL-C-L-30750-R.060). From the Helical Solutions End Mills for Aluminum - 3 Flute - Corner Radius - 45° Helix - Chipbreaker Rougher product family.
Warning: This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm. For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
3/4"
Cutter Diameter (Decimal Inch):
0.7500"
Length of Cut (Inch):
3-1/4"
Length of Cut (Decimal Inch):
3.2500"
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Corner Radius (Decimal Inch):
0.0600"
Number of Flutes:
3
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Length (Inch):
2-3/4"
Shank Length (Decimal Inch):
2.7500"
Finish/Coating:
Uncoated
Center Cutting:
Yes
Through Coolant:
No
interval quantity:
1
