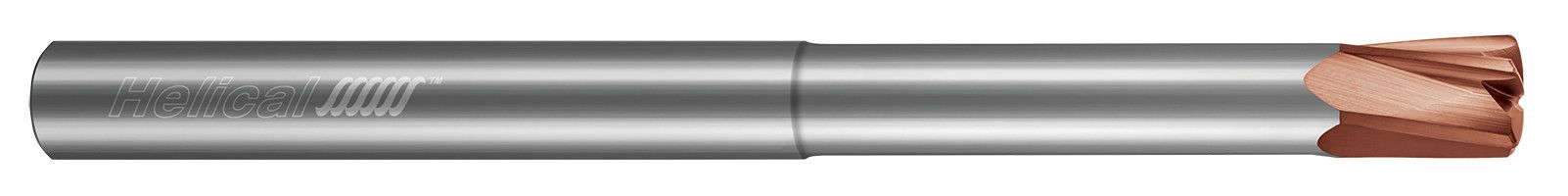

Helical Solutions 83726 | HFV-RN-060-40125 0.1250" (1/8) Cutter DIA x 0.2500" (1/4) Shank DIA x 0.1250" (1/8) Length of Cut x 2.5000" (2-1/2) OAL x 0.7500" (3/4) Reach Carbide High Feed End Mill, 4 Flutes, TPLUS Coated - (HFV-RN-060-40125)

Brand:

Helical Solutions

Cutter Diameter (Inch):

1/8"

Cutter Diameter (Decimal Inch):

0.1250"

Neck Diameter (Decimal Inch):

0.1100"

Neck Diameter (mm):

2.80mm

Length of Cut (Inch):

1/8"

Length of Cut (Decimal Inch):

0.1250"

Overall Reach (Inch):

3/4"

Overall Reach (Decimal Inch):

0.7500"

Overall Length (Inch):

2-1/2"

Overall Length (Decimal Inch):

2.5000"

Corner Radius (Decimal Inch):

0.0100"

Radius (Decimal Inch):

0.1125"

Number of Flutes:

4

Shank Diameter (Inch):

1/4"

Shank Diameter (Decimal Inch):

0.2500"

Shank Length (Inch):

1-3/4"

Shank Length (Decimal Inch):

1.7500"

Finish/Coating:

TPLUS

Center Cutting:

No

Through Coolant:

No

interval quantity:

1

SKU:

25178179

UPC:

Weight:

0.05 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout
