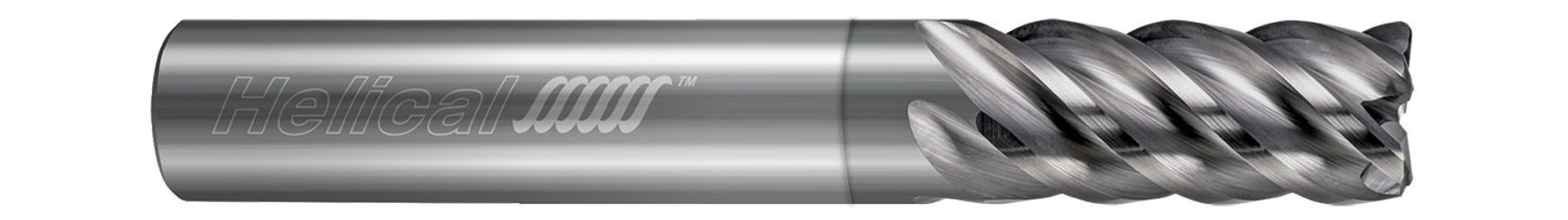

Helical Solutions 84128 | HVAL-053-50187-R.030 3/16" Diameter x 1/4" Shank x 1" LOC x 2-1/2" OAL x 0.0300" Radius 5 Flute Nplus Coated Solid Carbide Corner Radius End Mill

$37.40
Brand:
Helical Solutions
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
5
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Finish/Coating:
NPLUS
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.5mm
SKU:
25188436
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Helical's fully stocked 5 Flute Corner Radius End Mill with a variable pitch design is specially engineered for optimal performance in High Efficiency Milling (HEM) of aerospace aluminum alloys and other non-ferrous alloys.

  • Specially engineered for optimal performance in High Efficiency Milling (HEM) of aerospace aluminum alloys with excellent performance in other non-ferrous alloys
  • Excellent tool life and maximum material removal rates proven through extensive testing
  • Engineered with variable pitch for minimized harmonics and reduced tool pressure
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Nplus coating for maximum performance in abrasive aluminums and extended tool life in a wide variety of non-ferrous alloys
  • Solid carbide

Product Specifications
Cutter Diameter (Inch)0.1875" (3/16)
Length of Cut (Inch)1"
Overall Length (Inch)2.5000" (2-1/2)
Corner Radius (Inch)0.0300"
No of Flutes5
Shank Diameter (Inch)0.2500" (1/4)
Finish/CoatingNPLUS
Center Cutting (Yes/No)Yes

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Helical Solutions
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
5
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Finish/Coating:
NPLUS
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.5mm
