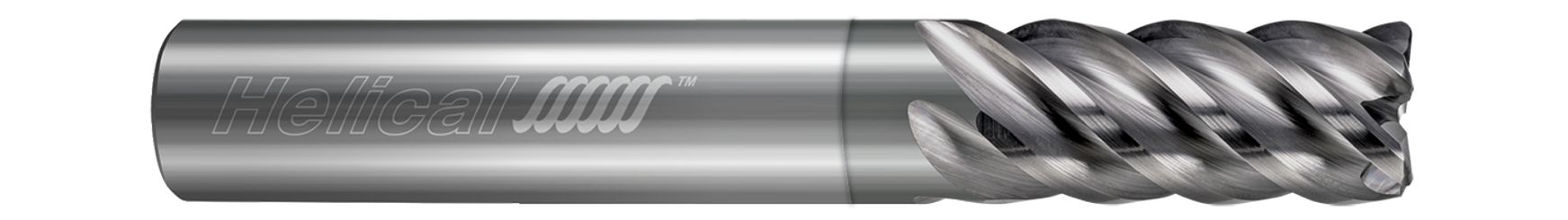

Helical's fully stocked 5 Flute Corner Radius End Mill with a variable pitch design is specially engineered for optimal performance in High Efficiency Milling (HEM) of aerospace aluminum alloys and other non-ferrous alloys.
- Specially engineered for optimal performance in High Efficiency Milling (HEM) of aerospace aluminum alloys with excellent performance in other non-ferrous alloys
- Excellent tool life and maximum material removal rates proven through extensive testing
- Engineered with variable pitch for minimized harmonics and reduced tool pressure
- Center cutting
- h6 shank tolerance for high precision tool holders
- Nplus coating for maximum performance in abrasive aluminums and extended tool life in a wide variety of non-ferrous alloys
- Solid carbide
Product Specifications
| Cutter Diameter (Inch) | 0.3750" (3/8) |
| Length of Cut (Inch) | 1" |
| Overall Length (Inch) | 3" |
| Corner Radius (Inch) | 0.0300" |
| No of Flutes | 5 |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Finish/Coating | NPLUS |
| Center Cutting (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
5
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Finish/Coating:
NPLUS
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
