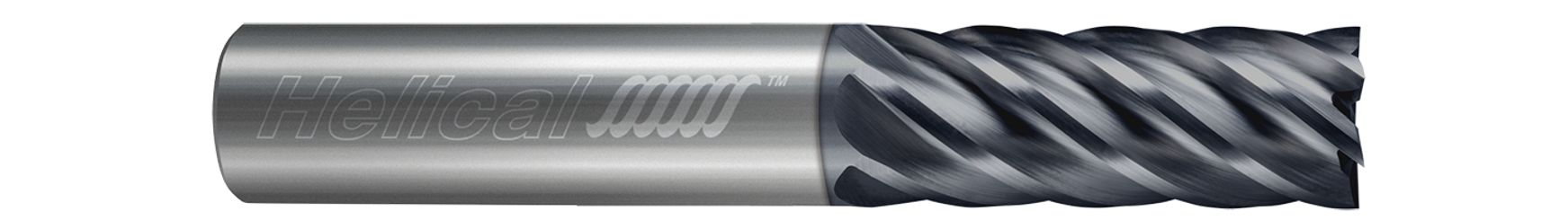

Utilize the HVTI-6, Helical Solutions' product line of tooling optimized for Titanium 6Al4V and other titanium alloys, to achieve exceptional performance in High Efficiency Milling (HEM).
- Specially engineered for optimal performance in High Efficiency Milling (HEM) of Titanium 6Al4V and other titanium alloys
- Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- Not for use in traditional slotting and roughing toolpaths
- Center cutting
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1875" (3/16) |
| Length of Cut (Inch) | 0.5625" (9/16) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Corner Radius (Inch) | 0.0100" |
| No of Flutes | 6 |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Finish/Coating | APLUS |
| Center Cutting (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
6
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0100"
Corner Radius (mm):
0.25mm
Length of Cut (Inch):
9/16"
Length of Cut (Decimal Inch):
0.5625"
Length of Cut (mm):
14.29mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.5mm
