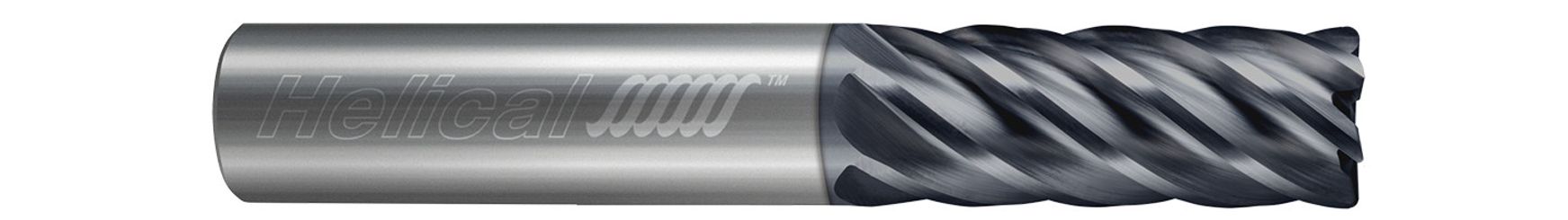

Helical Solutions 84393 | HEV-A-60125-R.010 1/8" Diameter x 1/8" Shank x 5/8" LOC x 2-1/2" OAL x 0.0100" Radius 6 Flute Aplus Coated Solid Carbide Corner Radius End Mill

$27.60
Brand:
Helical Solutions
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Mill Diameter (mm):
3.18mm
Number of Flutes:
6
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0100"
Corner Radius (mm):
0.25mm
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.5mm
SKU:
25188653
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
84393

The HEV-6 is designed for steels and titanium alloys, and is built for excellence in High Efficiency Milling (HEM) applications. Its variable pitch design and high flute count make it a durable and long-lasting tool, even in tough materials.

  • Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, cast iron, titanium, and titanium alloys.
  • Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
  • 6 flute variable pitch design for reduced harmonics and increased feed rates
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1250" (1/8)
Length of Cut (Inch)0.6250" (5/8)
Overall Length (Inch)2.5000" (2-1/2)
Corner Radius (Inch)0.0100"
No of Flutes6
Shank Diameter (Inch)0.1250" (1/8)
Finish/CoatingAPLUS
Center Cutting (Yes/No)Yes

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
