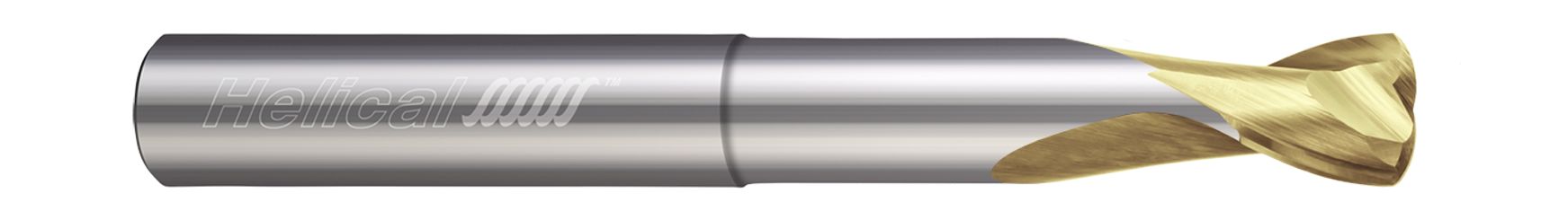

The specially engineered end profile of these High Feed End Mills for Aluminum and Non-Ferrous Materials reduces cutting forces, while its reduced neck geometry provides maximum strength in long reach and deep pocketing applications.
- Designed for outstanding performance and maximum feed rates in aluminum and non-ferrous materials
- Specifically engineered end profile for optimal tool engagement and reduced cutting forces
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- End cutting geometry (non-center cutting)
- h6 shank tolerance for high precision tool holders
- Zplus coating offers higher hardness and added lubricity for maximum performance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1875" (3/16) |
| Neck Diameter (Inch) | 0.1780" |
| Length of Cut (Inch) | 0.1875" (3/16) |
| Overall Reach (Inch) | 1.5000" (1-1/2) |
| Overall Length (Inch) | 3" |
| Theoretical Radius (Inch) | 0.0319" |
| No of Flutes | 2 |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Finish/Coating | ZPLUS |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
2
Length of Cut (Inch):
3/16"
Length of Cut (Decimal Inch):
0.1875"
Length of Cut (mm):
4.76mm
Finish/Coating:
Zplus
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
