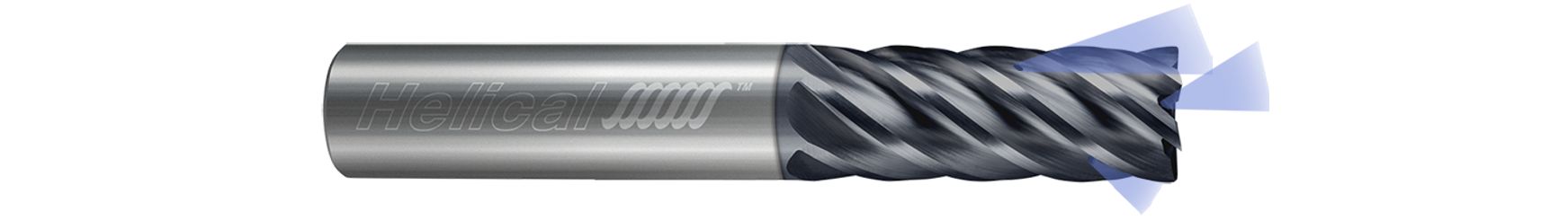

This 6 Flute Corner Radius End Mills for Titanium offering features CNC End Mills with variable pitch geometry for decreased chatter and harmonics and radial coolant holes for reduced heat, enhanced chip evacuation, and increased MRR.
- Specially engineered for optimal performance in High Efficiency Milling (HEM) of Titanium 6Al4V and other titanium alloys
- Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- Not for use in traditional slotting and roughing toolpaths
- Radial coolant holes for reduced heat, enhanced chip evacuation, and increased material removal rates
- Center cutting
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.3750" (3/8) |
| Length of Cut (Inch) | 1" |
| Overall Length (Inch) | 3" |
| Corner Radius (Inch) | 0.0100" |
| No of Flutes | 6 |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Finish/Coating | APLUS |
| Center Cutting (Yes/No) | Yes |
| Coolant Through (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
15/32"
Mill Diameter (Decimal Inch):
0.4700"
Mill Diameter (mm):
12.00mm
Number of Flutes:
4
Length of Cut (Inch):
15/16"
Length of Cut (Decimal Inch):
0.9400"
Length of Cut (mm):
24mm
Overall Length (Inch):
2-61/64"
Overall Length (Decimal Inch):
2.9500"
Overall Length (mm):
75mm
Shank Diameter (Inch):
15/32"
Shank Diameter (Decimal Inch):
0.4700"
Shank Diameter (mm):
12.00mm
Finish/Coating:
APLUS
Center Cutting:
Yes
