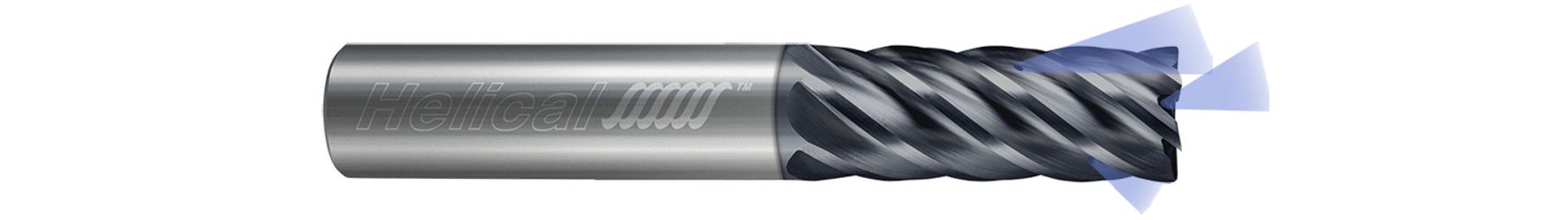

Helical Solutions 84517 | HVTIC-030-60750-R.030 3/4" Diameter x 3/4" Shank x 2-1/4" LOC x 5" OAL x 0.0300" Radius 6 Flute Aplus Coated Solid Carbide Corner Radius End Mill

$314.50
Brand:
Helical Solutions
Mill Diameter (Inch):
5/16"
Mill Diameter (Decimal Inch):
0.3125"
Mill Diameter (mm):
7.94mm
Number of Flutes:
3
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Length of Cut (mm):
31.75mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Finish/Coating:
UN
Center Cutting:
Yes
SKU:
25188667
Weight:
1.23 LBS
Shipping:
Free Shipping

This 6 Flute Corner Radius End Mills for Titanium offering features CNC End Mills with variable pitch geometry for decreased chatter and harmonics and radial coolant holes for reduced heat, enhanced chip evacuation, and increased MRR.

  • Specially engineered for optimal performance in High Efficiency Milling (HEM) of Titanium 6Al4V and other titanium alloys
  • Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
  • Not for use in traditional slotting and roughing toolpaths
  • Radial coolant holes for reduced heat, enhanced chip evacuation, and increased material removal rates
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.7500" (3/4)
Length of Cut (Inch)2.2500" (2-1/4)
Overall Length (Inch)5"
Corner Radius (Inch)0.0300"
No of Flutes6
Shank Diameter (Inch)0.7500" (3/4)
Finish/CoatingAPLUS
Center Cutting (Yes/No)Yes
Coolant Through (Yes/No)Yes
