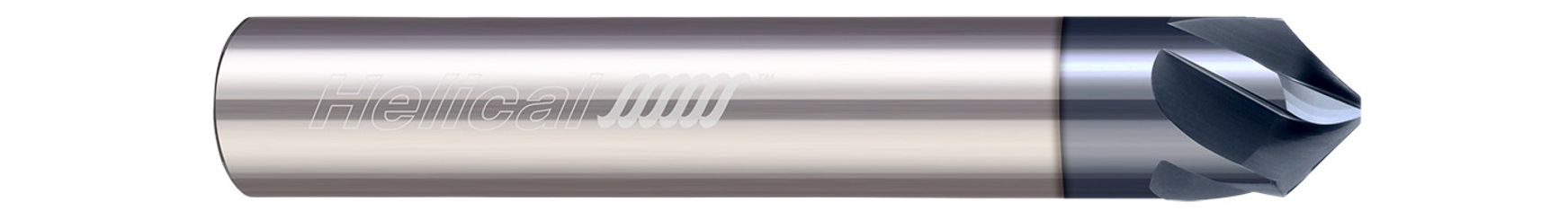

Introduced in 2016, the HPCM features a completely unique chamfer cutter design. The helical flute geometry and flat tip geometry provide significant boosts in performance over straight-fluted chamfer cutters, and the high flute count and Aplus coating make these tools capable of handling tough applications.
- Helically ground with positive axial rake and clearance for high performance chamfering
- Helical flute geometry results in superior part finish
- Flat tip diameter for programming accuracy and increased strength
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide end mills
Product Specifications
| Cutter Diameter (Inch) | 0.1250" (1/8) |
| Length of Cut (Inch) | 0.0360" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Tip (Inch) | 0.0400" |
| Included Angle | 100 |
| No of Flutes | 3 |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Finish/Coating | APLUS |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Head Diameter (Inch):
1/8"
Cutter Head Diameter (Decimal Inch):
0.1250"
Cutter Head Diameter (mm):
3.18mm
Included Angle A:
100
Finish/Coating:
APLUS
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.1mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Number of Flutes:
3"
