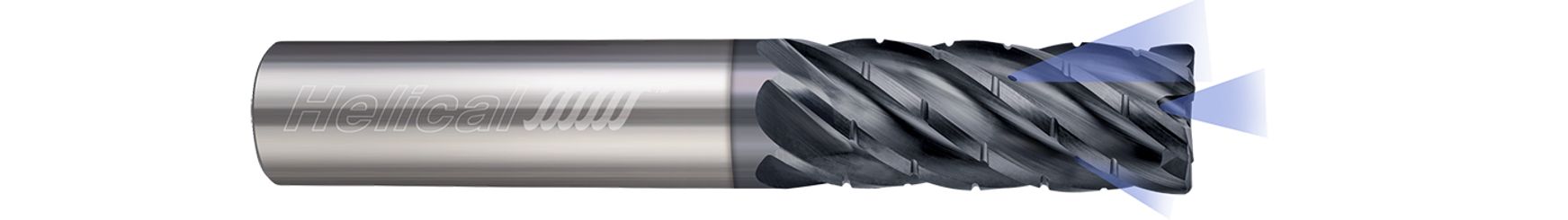

Optimized for High Efficiency Milling (HEM), this 6 Flute Chipbreaker Rougher features radial coolant holes and variable pitch chipbreaker geometry for reduced heat, enhanced chip evacuation, minimized harmonics, and reduced tool pressure.
- Specially engineered for optimal performance in High Efficiency Milling (HEM) of Titanium 6Al4V and other titanium alloys
- 6 flute variable pitch and offset chipbreaker geometry for optimal chip evacuation, minimized harmonics, and reduced tool pressure
- Radial coolant holes for reduced heat, enhanced chip evacuation, and increased material removal rates
- Not for use in traditional slotting and roughing toolpaths
- Center cutting
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Length of Cut (Inch) | 1" |
| Overall Length (Inch) | 3" |
| Corner Radius (Inch) | 0.0300" |
| No of Flutes | 6 |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Finish/Coating | APLUS |
| Center Cutting (Yes/No) | Yes |
| Chip Breaker (Yes/No) | Yes |
| Coolant Through (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.7mm
Number of Flutes:
6
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.7mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
