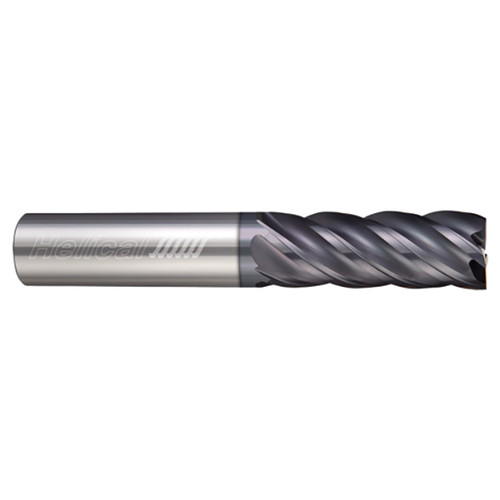

The 5 flute design of the HEV-5 provides a significant lift in tool life and productivity, while increasing feed rates over 4-fluted tools. Its variable pitch geometry, high flute count, and Aplus coating make it excel in tough materials like steels, tool steels, and cast iron.
- Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
- Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
- 5 flute variable pitch design for reduced harmonics and increased feed rates
- Center cutting
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1875" (3/16) |
| Length of Cut (Inch) | 1.3750" (1-3/8) |
| Overall Length (Inch) | 3" |
| No of Flutes | 5 |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Finish/Coating | APLUS |
| Center Cutting (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
5
Length of Cut (Inch):
1-3/8"
Length of Cut (Decimal Inch):
1.3750"
Length of Cut (mm):
34.93mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
Center Cutting:
Yes
