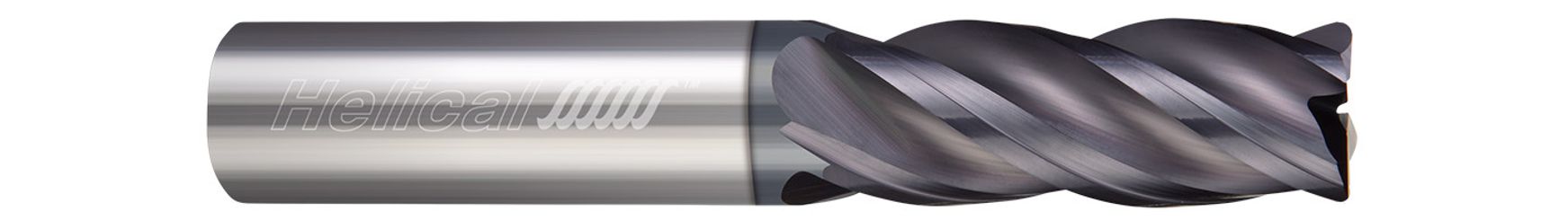

Helical Solutions 84699 | HSV-SR-40156-R.030 5/32" Diameter x 3/16" Shank x 5/16" LOC x 2" OAL x 0.0300" Radius 4 Flute Aplus Coated Solid Carbide Corner Radius End Mill

$32.10
Brand:
Helical Solutions
Mill Diameter (Inch):
5/32"
Mill Diameter (Decimal Inch):
0.1562"
Mill Diameter (mm):
3.97mm
Number of Flutes:
4
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
5/16"
Length of Cut (Decimal Inch):
0.3125"
Length of Cut (mm):
7.94mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.8mm
SKU:
25188519
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
84699

The HSV-4's variable pitch geometry effectively decreases chatter and harmonics, allowing it to leave a better part finish and last longer in your spindle. Featuring eccentric relief for maximum edge strength and Aplus coating for improved performance in tough materials, this tool is a strong choice for a variety of applications.

  • Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
  • Engineered with eccentric relief for maximum edge strength in both roughing and finishing applications
  • Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1562" (5/32)
Length of Cut (Inch)0.3125" (5/16)
Overall Length (Inch)2"
Corner Radius (Inch)0.0300"
No of Flutes4
Shank Diameter (Inch)0.1875" (3/16)
Finish/CoatingAPLUS
Center Cutting (Yes/No)Yes

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Helical Solutions
Mill Diameter (Inch):
5/32"
Mill Diameter (Decimal Inch):
0.1562"
Mill Diameter (mm):
3.97mm
Number of Flutes:
4
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
5/16"
Length of Cut (Decimal Inch):
0.3125"
Length of Cut (mm):
7.94mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.8mm
