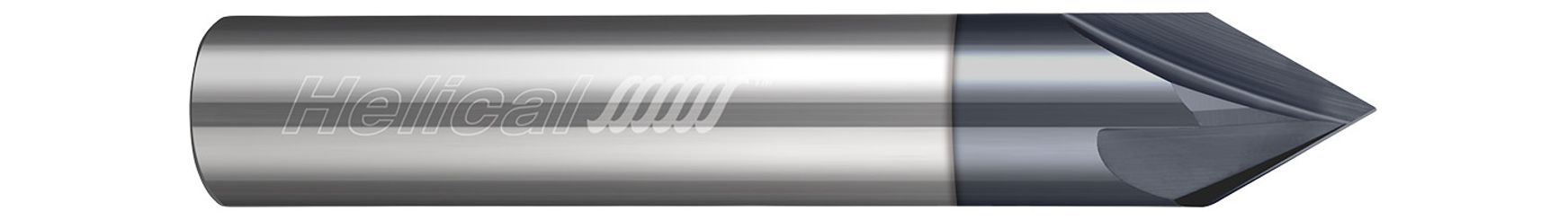

These chamfer mills are available in 2 and 4 flutes for soft and hard materials. They are ground with a positive axial rake and clearance and are available uncoated and Aplus coated for optimal performance and wear resistance.
- Designed for universal chamfering applications
- Offered with 2 and 4 flutes for soft and hard materials
- Ground with positive axial rake and clearance for optimal performance
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.6250" (5/8) |
| Length of Cut (Inch) | 0.3120" (5/16) |
| Overall Length (Inch) | 3" |
| Tip (Inch) | 0.0430" |
| Included Angle | 90 |
| No of Flutes | 4 |
| Shank Diameter (Inch) | 0.6250" (5/8) |
| Finish/Coating | UN |
| Center Cutting (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Head Diameter (Inch):
5/8"
Cutter Head Diameter (Decimal Inch):
0.6250"
Cutter Head Diameter (mm):
15.88mm
Finish/Coating:
UN
Overall Length (Inch):
3.0000"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Number of Flutes:
4
