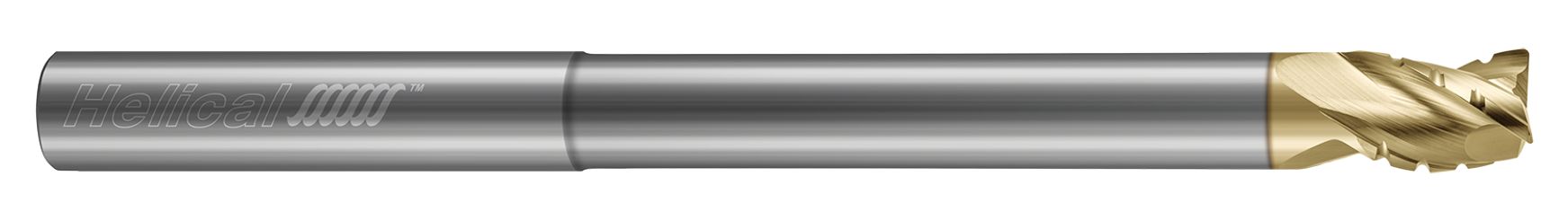

Helical's H35ALV-C-RN-3 product offering, a 3 flute, corner radius end mill, is engineered with optimized variable pitch and chipbreaker geometries for reduced harmonics and elevated material removal rates (MRR).
- Engineered with optimized variable pitch and chipbreaker geometry for reduced harmonics and elevated material removal rates
- Unique tool design requires less torque and horsepower
- Excellent performance in High Efficiency Milling (HEM)
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- Unique "3 teeth-to-center" end geometry for ramping applications
- h6 shank tolerance for high precision tool holders
- Zplus coating for maximum performance in aluminum and non-ferrous alloys
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1250" (1/8) |
| Neck Diameter (Inch) | 0.1180" (3 mm) |
| Length of Cut (Inch) | 0.1563" (5/32) |
| Overall Reach (Inch) | 0.6250" (5/8) |
| Overall Length (Inch) | 3" |
| Corner Radius (Inch) | 0.0100" |
| No of Flutes | 3 |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Finish/Coating | ZPLUS |
| Center Cutting (Yes/No) | Yes |
| Chip Breaker (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
4
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
APLUS
Center Cutting:
Yes
