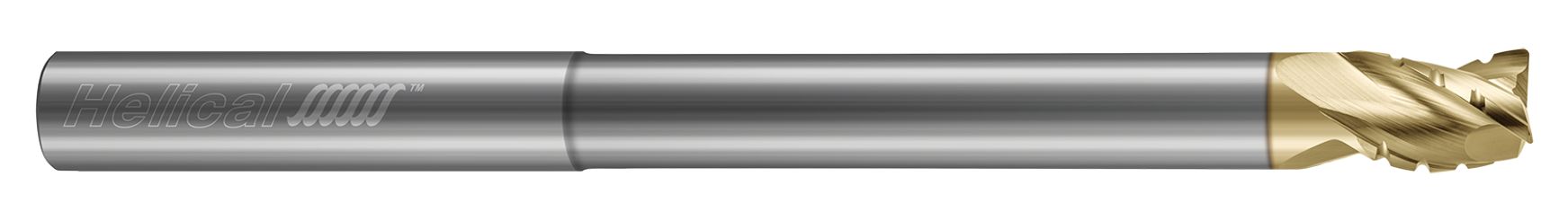

Helical Solutions 84855 | H35ALV-C-RN-060-30125-R.010 1/8" Diameter x 1/8" Shank x 5/32" LOC x 3" OAL x 0.0100" Radius 3 Flute Zplus Coated Solid Carbide Corner Radius End Mill

$37.40
Brand:
Helical Solutions
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Mill Diameter (mm):
3.18mm
Number of Flutes:
3
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0100"
Corner Radius (mm):
0.25mm
Length of Cut (Inch):
5/32"
Length of Cut (Decimal Inch):
0.1563"
Length of Cut (mm):
3.97mm
Finish/Coating:
Zplus
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
SKU:
25187985
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
84855

Helical's H35ALV-C-RN-3 product offering, a 3 flute, corner radius end mill, is engineered with optimized variable pitch and chipbreaker geometries for reduced harmonics and elevated material removal rates (MRR).

  • Engineered with optimized variable pitch and chipbreaker geometry for reduced harmonics and elevated material removal rates
  • Unique tool design requires less torque and horsepower
  • Excellent performance in High Efficiency Milling (HEM)
  • Reduced neck provides maximum strength in long reach and deep pocketing applications
  • Unique "3 teeth-to-center" end geometry for ramping applications
  • h6 shank tolerance for high precision tool holders
  • Zplus coating for maximum performance in aluminum and non-ferrous alloys
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.1250" (1/8)
Neck Diameter (Inch) 0.1180" (3 mm)
Length of Cut (Inch) 0.1563" (5/32)
Overall Reach (Inch) 0.7500" (3/4)
Overall Length (Inch) 3"
Corner Radius (Inch) 0.0100"
No of Flutes 3
Shank Diameter (Inch) 0.1250" (1/8)
Finish/Coating ZPLUS
Center Cutting (Yes/No) Yes
Chip Breaker (Yes/No) Yes

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Helical Solutions
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Mill Diameter (mm):
3.18mm
Number of Flutes:
3
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0100"
Corner Radius (mm):
0.25mm
Length of Cut (Inch):
5/32"
Length of Cut (Decimal Inch):
0.1563"
Length of Cut (mm):
3.97mm
Finish/Coating:
Zplus
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
