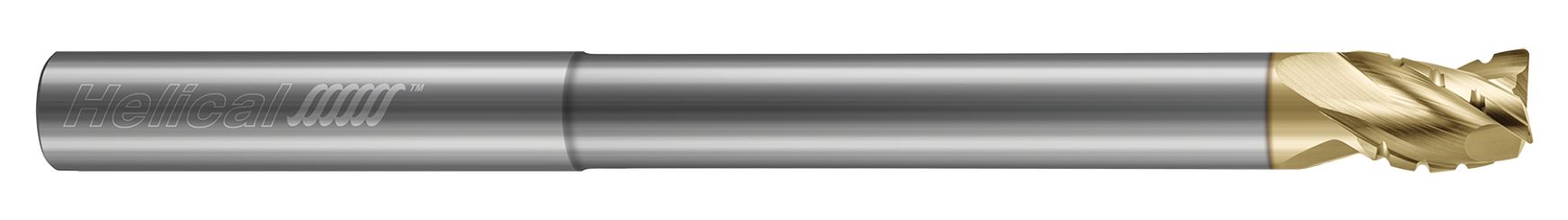

Helical Solutions 84857 | H35ALV-C-RN-040-30187-R.010 3/16" Diameter x 3/16" Shank x 7/32" LOC x 3" OAL x 0.0100" Radius 3 Flute Zplus Coated Solid Carbide Corner Radius End Mill

$48.70
Brand:
Helical Solutions
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Mill Diameter (mm):
3.18mm
Number of Flutes:
4
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.8mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
APLUS
Center Cutting:
Yes
SKU:
25187971
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Helical's H35ALV-C-RN-3 product offering, a 3 flute, corner radius end mill, is engineered with optimized variable pitch and chipbreaker geometries for reduced harmonics and elevated material removal rates (MRR).

  • Engineered with optimized variable pitch and chipbreaker geometry for reduced harmonics and elevated material removal rates
  • Unique tool design requires less torque and horsepower
  • Excellent performance in High Efficiency Milling (HEM)
  • Reduced neck provides maximum strength in long reach and deep pocketing applications
  • Unique "3 teeth-to-center" end geometry for ramping applications
  • h6 shank tolerance for high precision tool holders
  • Zplus coating for maximum performance in aluminum and non-ferrous alloys
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1875" (3/16)
Neck Diameter (Inch)0.1780"
Length of Cut (Inch)0.2188" (7/32)
Overall Reach (Inch)0.7500" (3/4)
Overall Length (Inch)3"
Corner Radius (Inch)0.0100"
No of Flutes3
Shank Diameter (Inch)0.1875" (3/16)
Finish/CoatingZPLUS
Center Cutting (Yes/No)Yes
Chip Breaker (Yes/No)Yes
