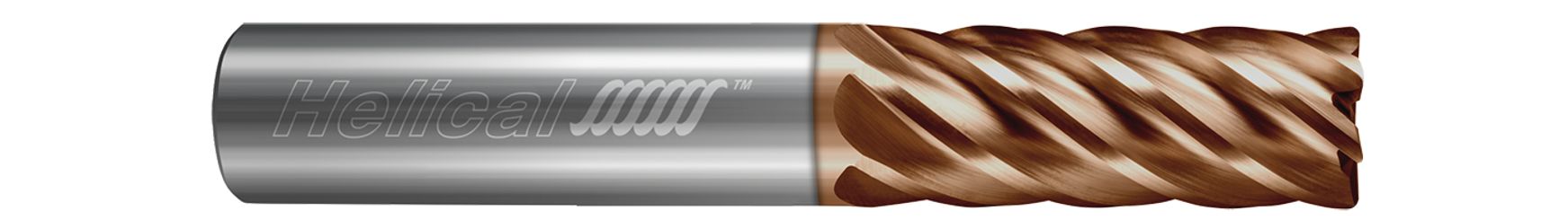

Corner radius profile, 6 flute end mill featuring a variable pitch design for reduced harmonics, and engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications.
- Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc
- Well-suited for increased wear resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
- Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
- 6 flute variable pitch design for reduced harmonics and increased feed rates
- Center cutting
- h6 shank tolerance for high precision tool holders
- Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.3750" (3/8) |
| Length of Cut (Inch) | 0.7500" (3/4) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Corner Radius (Inch) | 0.0200" |
| No of Flutes | 6 |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Finish/Coating | TPLUS |
| Center Cutting (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
15/32"
Mill Diameter (Decimal Inch):
0.4700"
Mill Diameter (mm):
12.00mm
Number of Flutes:
4
Length of Cut (Inch):
45/64"
Length of Cut (Decimal Inch):
0.7100"
Length of Cut (mm):
18mm
Overall Length (Inch):
2-61/64"
Overall Length (Decimal Inch):
2.9500"
Overall Length (mm):
75mm
Shank Diameter (Inch):
15/32"
Shank Diameter (Decimal Inch):
0.4700"
Shank Diameter (mm):
12.00mm
Finish/Coating:
APLUS
Center Cutting:
Yes
