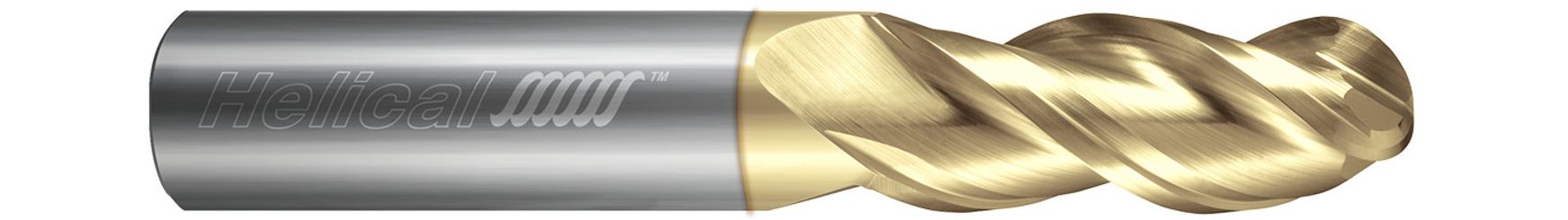

Helical Solutions 86076 | H40ALV-LX-30187-BN 3/16" Diameter x 3/16" Shank x 1-9/16" LOC x 4" OAL x 3/32" 3 Flute Uncoated Solid Carbide Ball End Mill

$45.30
Brand:
Helical Solutions
Cutter Diameter (Inch):
3/16"
Cutter Diameter (Decimal Inch):
0.1875"
Length of Cut (Inch):
1-9/16"
Length of Cut (Decimal Inch):
1.5625"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Number of Flutes:
3
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Length (Inch):
2-7/16"
Shank Length (Decimal Inch):
2.4375"
Finish/Coating:
Uncoated
Center Cutting:
Yes
Through Coolant:
No
interval quantity:
1
SKU:
25188031
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
86076

Engineered with a unique “3 teeth to-center” end geometry, the specialized combination of features of the H40ALV-3 is designed for excellent performance and accelerated metal removal rates in roughing and finishing applications in aluminum and non-ferrous materials. This tool is offered in Zplus coating for high hardness and added lubricity.

  • Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
  • Designed with a specialized combination of features for excellent performance in roughing and finishing applications
  • Unique "3 teeth-to-center" end geometry for ramping applications
  • Excellent performance in High Efficiency Milling (HEM)
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Uncoated tool offers an excellent option for aluminum finishing applications
  • Zplus coating offers higher hardness and added lubricity for maximum performance
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1875" (3/16)
Length of Cut (Inch)1.5625" (1-9/16)
Overall Length (Inch)4"
Corner Radius (Inch)0.0937" (3/32)
No of Flutes3
Shank Diameter (Inch)0.1875" (3/16)
Finish/CoatingUncoated
Center Cutting (Yes/No)Yes
