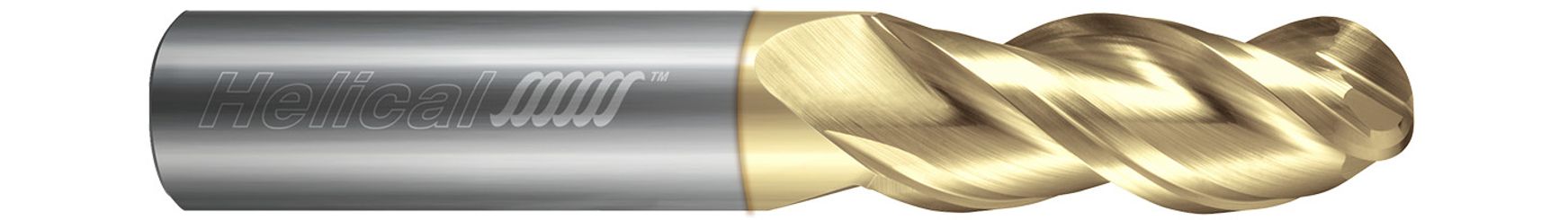

Engineered with a unique 3 teeth to-center end geometry, the specialized combination of features of the H40ALV-3 is designed for excellent performance and accelerated metal removal rates in roughing and finishing applications in aluminum and non-ferrous materials. This tool is offered in Zplus coating for high hardness and added lubricity.
- Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
- Designed with a specialized combination of features for excellent performance in roughing and finishing applications
- Unique "3 teeth-to-center" end geometry for ramping applications
- Excellent performance in High Efficiency Milling (HEM)
- Center cutting
- h6 shank tolerance for high precision tool holders
- Uncoated tool offers an excellent option for aluminum finishing applications
- Zplus coating offers higher hardness and added lubricity for maximum performance
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 1" |
| Length of Cut (Inch) | 4.2500" (4-1/4) |
| Overall Length (Inch) | 7" |
| Corner Radius (Inch) | 0.5000" (1/2) |
| No of Flutes | 3 |
| Shank Diameter (Inch) | 1" |
| Finish/Coating | Uncoated |
| Center Cutting (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
1"
Cutter Diameter (Decimal Inch):
1.0000"
Length of Cut (Inch):
4-1/4"
Length of Cut (Decimal Inch):
4.2500"
Overall Length (Inch):
7"
Overall Length (Decimal Inch):
7.0000"
Number of Flutes:
3
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Length (Inch):
2-3/4"
Shank Length (Decimal Inch):
2.7500"
Finish/Coating:
Uncoated
Center Cutting:
Yes
Through Coolant:
No
