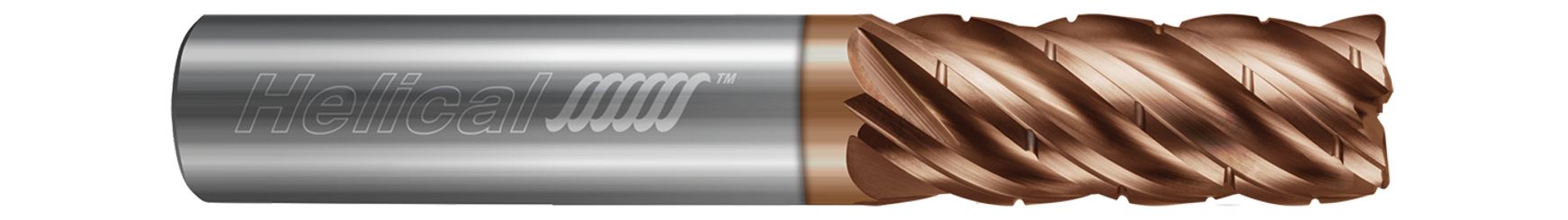

Helical Solutions 86156 | HEV-C-X-50750-R.030 3/4" Diameter x 3/4" Shank x 4" LOC x 6-1/2" OAL x 0.0300" Radius 5 Flute Tplus Coated Solid Carbide Corner Radius End Mill

$380.20
Brand:
Helical Solutions
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
5
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
4"
Length of Cut (Decimal Inch):
4.0000"
Length of Cut (mm):
101.6mm
Finish/Coating:
Tplus
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
6-1/2"
Overall Length (Decimal Inch):
6.5000"
Overall Length (mm):
165.1mm
SKU:
25187532
Weight:
1.23 LBS
Shipping:
Free Shipping
86156

5 flute chipbreaker end mill, engineered with variable pitch and offset chipbreaker geometry for optimal chip evacuation, reduced harmonics, and reduced tool pressure in stainless steels, high temp alloys, and hardened steels up to 65 Rc.

  • Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc
  • Well-suited for increased wear resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
  • Engineered for excellent performance in High Efficiency Milling (HEM)
  • 5 flute variable pitch and offset chipbreaker geometry for optimal chip evacuation, reduced harmonics, and reduced tool pressure
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.7500" (3/4)
Length of Cut (Inch)4"
Overall Length (Inch)6.5000" (6-1/2)
Corner Radius (Inch)0.0300"
No of Flutes5
Shank Diameter (Inch)0.7500" (3/4)
Finish/CoatingTPLUS
Center Cutting (Yes/No)Yes
Chip Breaker (Yes/No)Yes

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Helical Solutions
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
5
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
4"
Length of Cut (Decimal Inch):
4.0000"
Length of Cut (mm):
101.6mm
Finish/Coating:
Tplus
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
6-1/2"
Overall Length (Decimal Inch):
6.5000"
Overall Length (mm):
165.1mm
