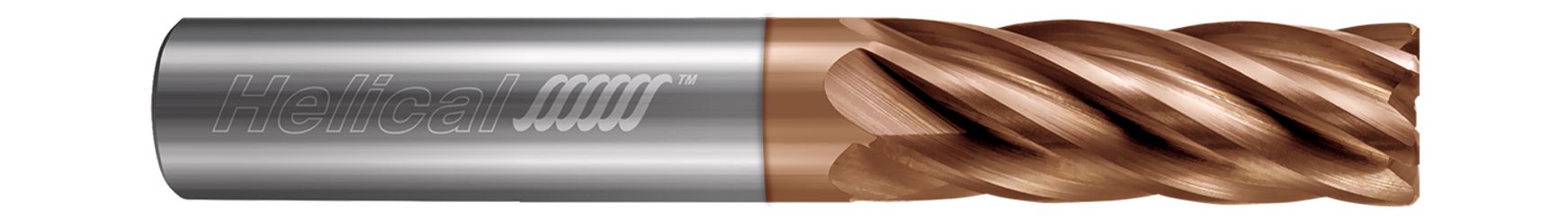

Designed with variable pitch geometry to reduce chatter and harmonics, this Corner Radius End Mill is engineered to excel in both High Efficiency Milling (HEM) and traditional milling of Inconel 718 and other nickel-based superalloys.
- Specially engineered for optimal performance in Inconel 718 and other nickel-based superalloys in High Efficiency Milling (HEM) and traditional roughing toolpaths
- 6 flute variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- End cutting geometry (non-center cutting)
- h6 shank tolerance for high precision tool holders
- Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.7500" (3/4) |
| Length of Cut (Inch) | 1.6250" (1-5/8) |
| Overall Length (Inch) | 4" |
| Corner Radius (Inch) | 0.0600" |
| No of Flutes | 6 |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Finish/Coating | TPLUS |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
6
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Finish/Coating:
Tplus
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
