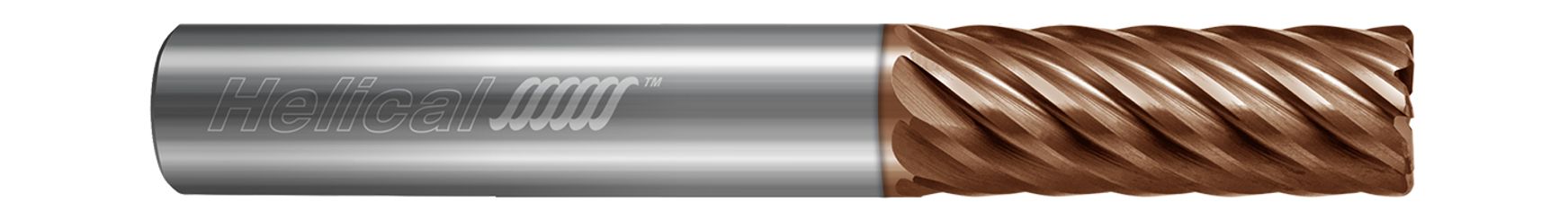

Helical Solutions 86239 | HVNI-033-80375-R.010 3/8" Diameter x 3/8" Shank x 1-1/4" LOC x 3" OAL x 0.0100" Radius 8 Flute Tplus Coated Solid Carbide Corner Radius End Mill

$61.20
Brand:
Helical Solutions
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
8
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0100"
Corner Radius (mm):
0.25mm
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Length of Cut (mm):
31.75mm
Finish/Coating:
Tplus
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
SKU:
25187938
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

This 8 flute, Corner Radius End Mill is specially enginered for optimal performace in High Efficiency Milling (HEM) of Inconel 718 and other nickel-based superalloys, and features a variable pitch design for improved part finish.

  • Specially engineered for optimal performance in High Efficiency Milling (HEM) of Inconel 718 and other nickel-based superalloys
  • 8 flute variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
  • Not for use in traditional slotting and roughing toolpaths
  • End cutting geometry (non-center cutting)
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.3750" (3/8)
Length of Cut (Inch)1.2500" (1-1/4)
Overall Length (Inch)3"
Corner Radius (Inch)0.0100"
No of Flutes8
Shank Diameter (Inch)0.3750" (3/8)
Finish/CoatingTPLUS
