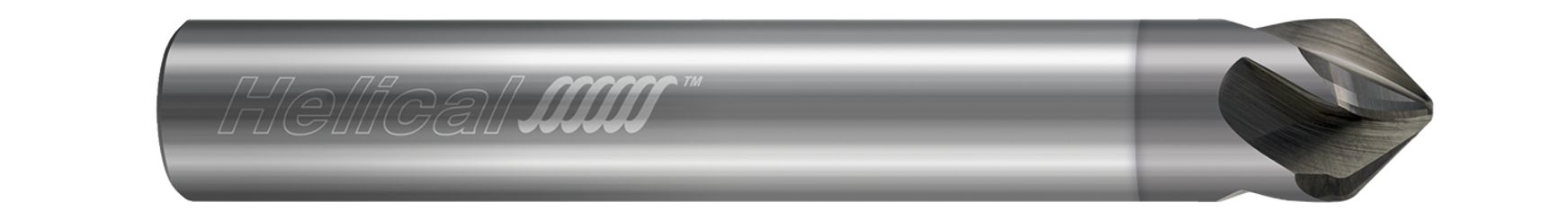

CNC ground in the USA, this solid carbide, 4 Flute Taper Form Multi-Axis Finisher features three targential radii offered in a variety of angles to provide maximum performance and optimal clearance for any aluminum workpiece.
- Specially defined profile for massive reductions in cycle time and vastly improved surface finish
- Taper form with three tangential radii offered in a variety of angles for maximum performance and optimal clearance angle for any workpiece
- 4 flute geometry specifically designed for finishing in aluminum and non-ferrous alloys
- Center cutting
- Nplus coating for maximum performance in abrasive aluminums and extended tool life in a wide variety of non-ferrous alloys
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.6250" (5/8) |
| Length of Cut (Inch) | 0.5469" (35/64) |
| Overall Length (Inch) | 3" |
| Corner Radius (Inch) | 0.3125" (5/16) |
| Included Angle | 60 |
| No of Flutes | 4 |
| Shank Diameter (Inch) | 0.6250" (5/8) |
| Finish/Coating | NPLUS |
| Center Cutting (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Head Diameter (Inch):
5/8"
Cutter Head Diameter (Decimal Inch):
0.6250"
Cutter Head Diameter (mm):
15.88mm
Included Angle A:
60
Finish/Coating:
NPLUS
Overall Length (Inch):
3.0000"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Number of Flutes:
4"
