Product Specifications

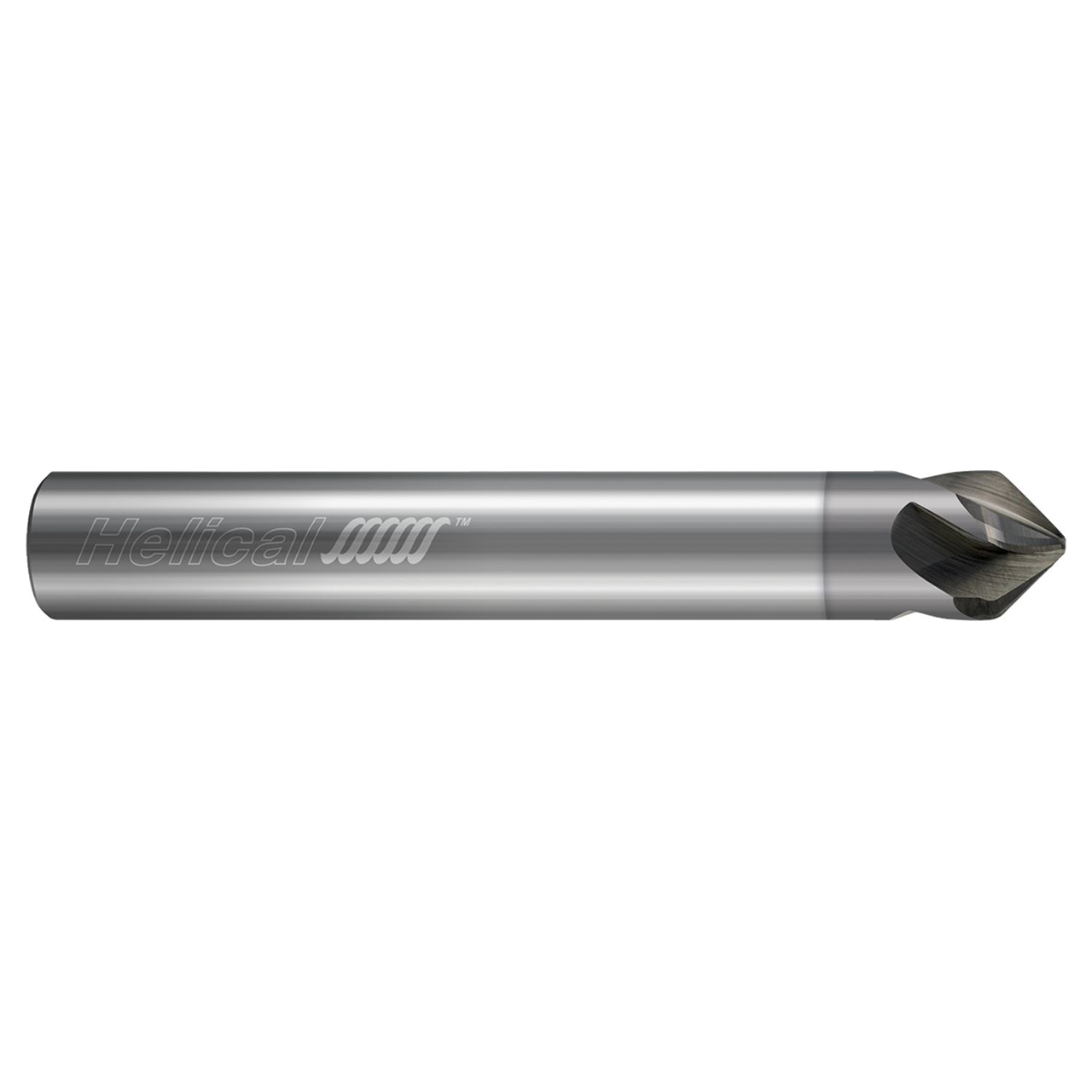

| # Manufacturer Number | 86298 |
| Cutter Diameter (Inch) | 5/8" |
| Cutter Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Length of Cut (Inch) | 11/64" |
| Length of Cut (Decimal Inch) | 0.1788" |
| Corner Radius (Decimal Inch) | 0.0391" |
| Radius (Decimal Inch) | 20.0000" |
| Tip Radius (Inch) | 5/32" |
| Tip Radius (Decimal Inch) | 0.1563" |
| Included Angle | 120 Degree |
| Number of Flutes | 4 |
| LOC Multiple | (0.3x) |
| Benefit Multiple | 8x |
| Center Cutting (Yes/No) | Yes |
| Coating | Nplus |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6250"
Length of Cut (Decimal Inch):
0.1788"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Corner Radius (Decimal Inch):
0.0391"
Radius (Decimal Inch):
20.0000"
Included Angle:
120 Degree
Number of Flutes:
4
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Length (Decimal Inch):
2.8091"
Finish/Coating:
NPLUS
Center Cutting:
Yes
Through Coolant:
No
interval quantity:
1
