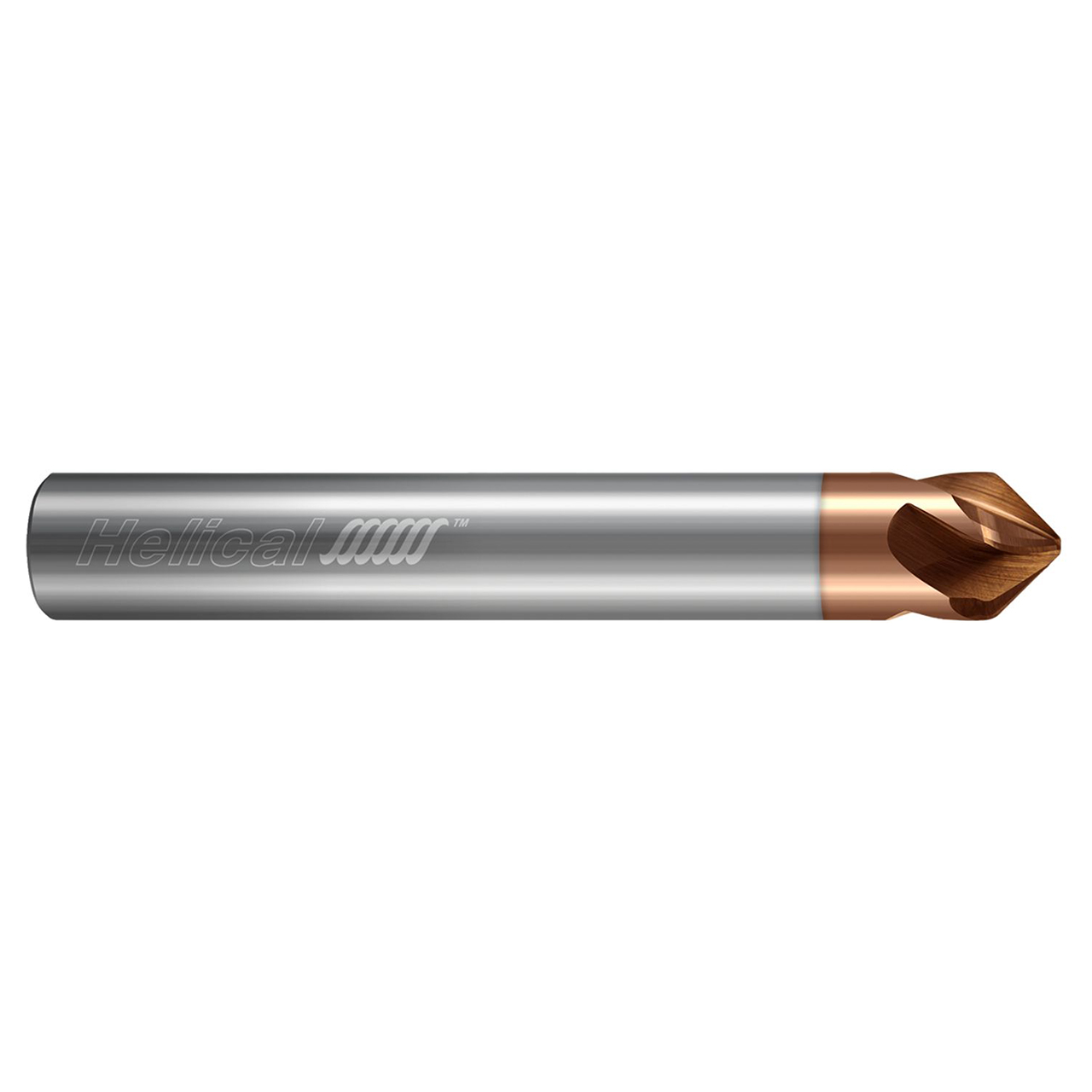

Product Specifications
| # Manufacturer Number | 86360 |
| Cutter Diameter (Inch) | 3/4" |
| Cutter Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Length of Cut (Inch) | 7/32" |
| Length of Cut (Decimal Inch) | 0.2146" |
| Corner Radius (Inch) | 3/64" |
| Corner Radius (Decimal Inch) | 0.0469" |
| Radius (Decimal Inch) | 24.0000" |
| Tip Radius (Inch) | 3/16" |
| Tip Radius (Decimal Inch) | 0.1875" |
| Included Angle | 120 Degree |
| Number of Flutes | 4 |
| LOC Multiple | (0.3x) |
| Benefit Multiple | 8x |
| Center Cutting (Yes/No) | Yes |
| Coating | Tplus |
