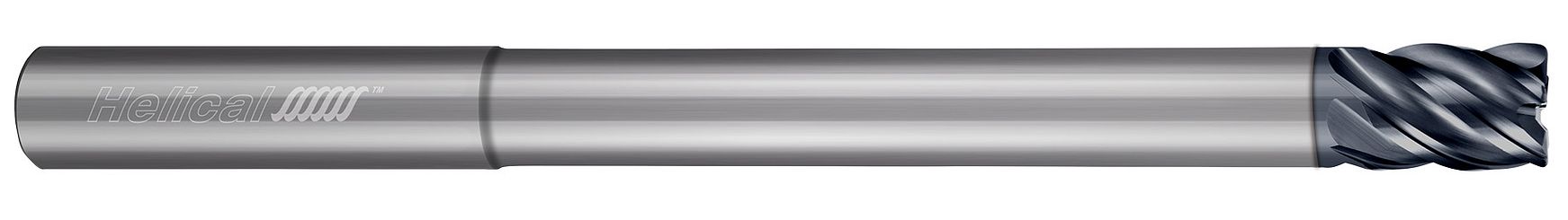

The 5 flute design of the HEV-RN-5 provides a significant lift in tool life and productivity, while increasing feed rate 20 percent over a 4-fluted tool. Its variable pitch geometry and strong core work in tandem with the reduced neck to make this tool capable of excelling in long reach applications in tough materials.
- Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
- Excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
- 5 flute variable pitch design for reduced harmonics and increased feed rates
- Center cutting
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.3750" (3/8) |
| Neck Diameter (Inch) | 0.3560" |
| Length of Cut (Inch) | 0.5000" (1/2) |
| Overall Reach (Inch) | 1.6250" (1-5/8) |
| Overall Length (Inch) | 4" |
| Corner Radius (Inch) | 0.0600" |
| No of Flutes | 5 |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Finish/Coating | APLUS |
| Center Cutting (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
5
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.7mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
