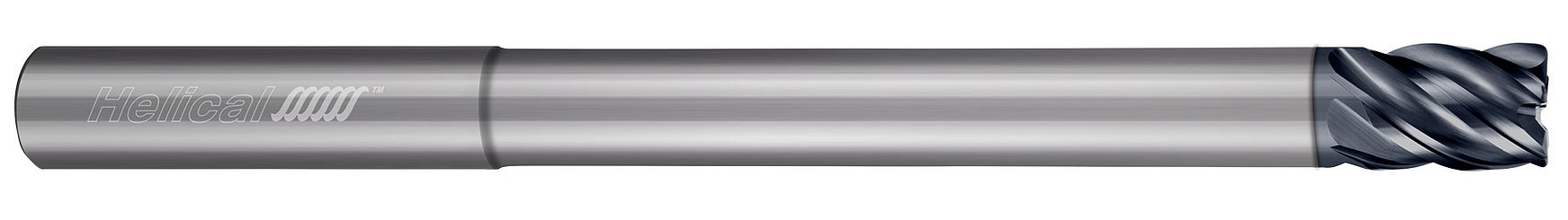

Helical Solutions 86401 | HEV-RN-A-50500-R.060 1/2" Diameter x 1/2" Shank x 5/8" LOC x 5" OAL x 0.0600" Radius 5 Flute Aplus Coated Solid Carbide Corner Radius End Mill

$134.00
Brand:
Helical Solutions
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.7mm
Number of Flutes:
5
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.7mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127mm
SKU:
25187563
Weight:
1.23 LBS
Shipping:
Free Shipping
86401

The 5 flute design of the HEV-RN-5 provides a significant lift in tool life and productivity, while increasing feed rate 20 percent over a 4-fluted tool. Its variable pitch geometry and strong core work in tandem with the reduced neck to make this tool capable of excelling in long reach applications in tough materials.

  • Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
  • Excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
  • 5 flute variable pitch design for reduced harmonics and increased feed rates
  • Center cutting
  • Reduced neck provides maximum strength in long reach and deep pocketing applications
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.5000" (1/2)
Neck Diameter (Inch)0.4750"
Length of Cut (Inch)0.6250" (5/8)
Overall Reach (Inch)2.7500" (2-3/4)
Overall Length (Inch)5"
Corner Radius (Inch)0.0600"
No of Flutes5
Shank Diameter (Inch)0.5000" (1/2)
Finish/CoatingAPLUS
Center Cutting (Yes/No)Yes
