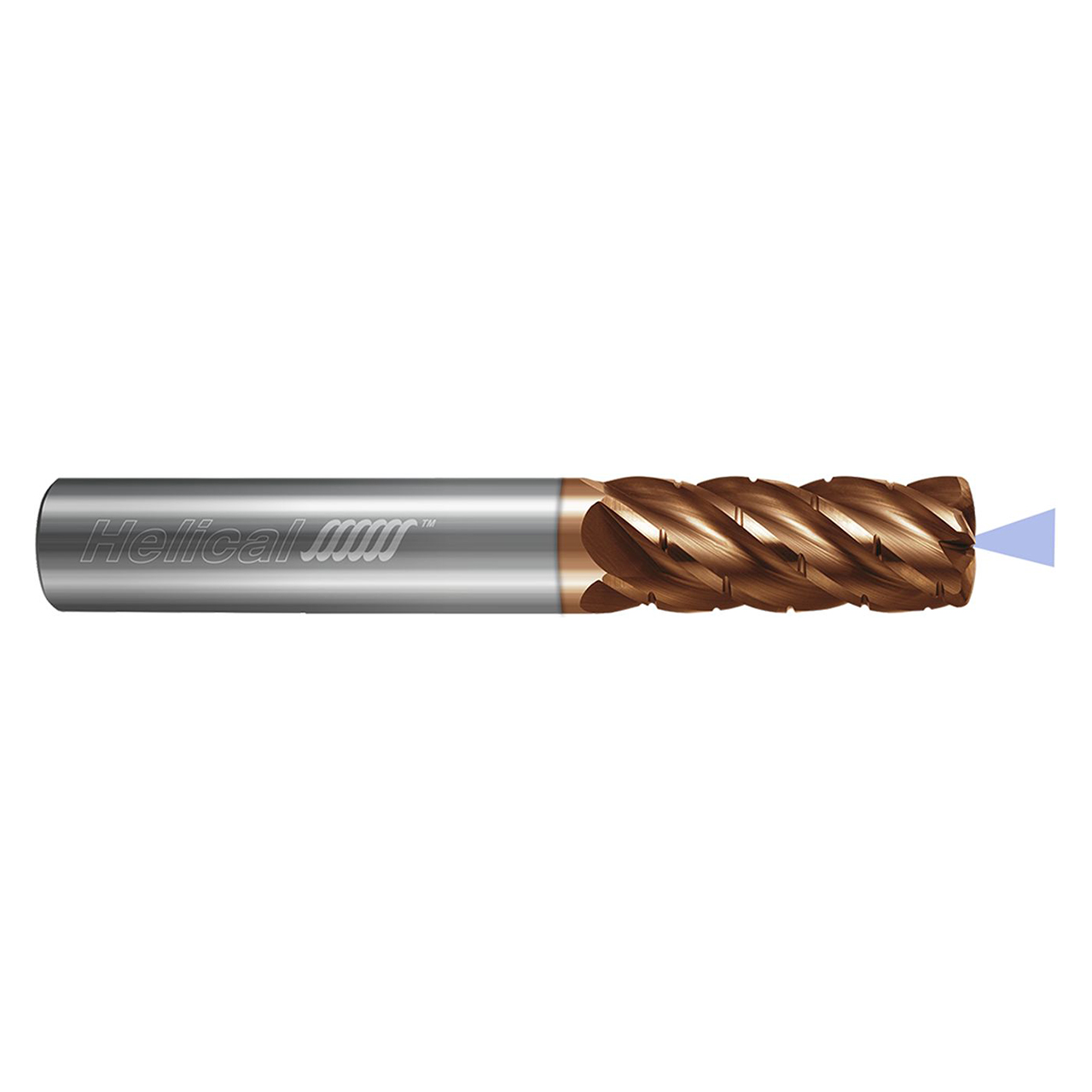

The specially engineered end profile of these High Feed End Mills for Aluminum and Non-Ferrous Materials reduces cutting forces, while its reduced neck geometry provides maximum strength in long reach and deep pocketing applications.
Features:- Designed for outstanding performance and maximum feed rates in aluminum and non-ferrous materials
- Specifically engineered end profile for optimal tool engagement and reduced cutting forces
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- End cutting geometry (non-center cutting)
- h6 shank tolerance for high precision tool holders
- Zplus coating offers higher hardness and added lubricity for maximum performance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Tool Number | 86429 |
| Cutter Diameter (Inch) | 0.2500" |
| Length of Cut (Inch) | 0.7500" |
| Overall Length (Inch) | 2.5000" |
| Theoretical Radius (Inch) | 0.0314" |
| No of Flutes | 5 |
| LOC Multiple | 3x |
| Shank Diameter (Inch) | 0.2500" |
| Shank Length (Inch) | 1.7500" |
| Coating | Tplus |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2500"
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Corner Radius (Decimal Inch):
0.0200"
Radius (Decimal Inch):
0.2250"
Number of Flutes:
5
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Length (Inch):
1-3/4"
Shank Length (Decimal Inch):
1.7500"
Finish/Coating:
TPLUS
Center Cutting:
No
Through Coolant:
Yes
