The H40ALV-3's end geometry contains a wiper flat, designed to swiftly remove scallop marks on the floor of a part to leave a superior finish in aluminum and non-ferrous alloys. This feature is included on all square profiles and where the tool's corner radius does not exceed 20 percent of the cutter diameter.
Features:- Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
- Designed with a specialized combination of features for excellent performance in roughing and finishing applications
- Unique "3 teeth-to-center" end geometry for ramping applications
- Wiper flat design leaves superior floor finish
- Excellent performance in High Efficiency Milling (HEM)
- Center cutting
- h6 shank tolerance for high precision tool holders
- Uncoated tool offers an excellent option for aluminum finishing applications
- Zplus coating offers higher hardness and added lubricity for maximum performance
- Solid carbide end mills
- CNC ground in the USA

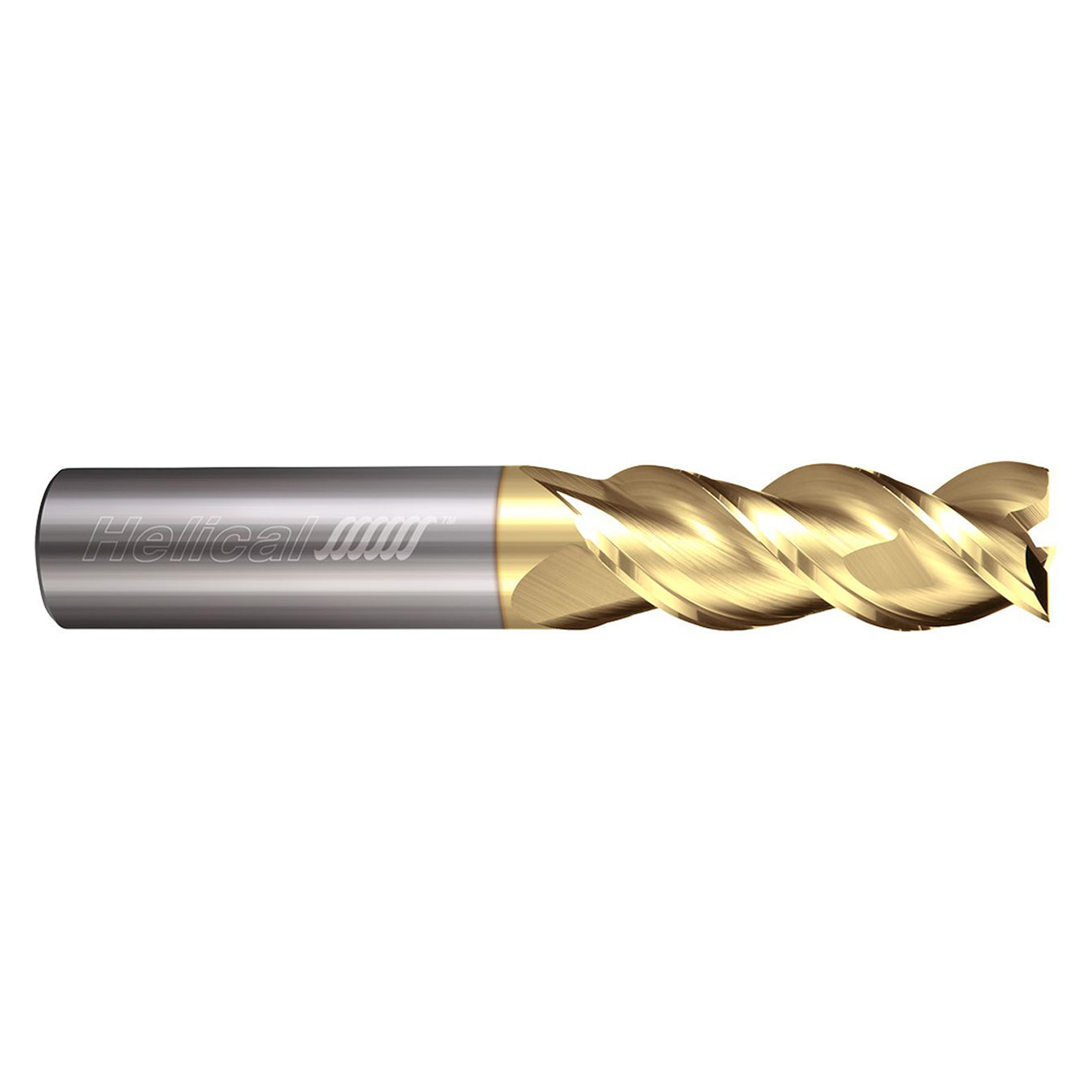

Product Specifications
| Tool Number | 87069 |
| Cutter Diameter (Inch) | 0.7500" |
| Length of Cut (Inch) | 4.7500" |
| Overall Length (Inch) | 7.0000" |
| No of Flutes | 3 |
| LOC Multiple | 6.3x |
| Shank Diameter (Inch) | 0.7500" |
| Coating | Zplus |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
3/4"
Cutter Diameter (Decimal Inch):
0.7500"
Length of Cut (Inch):
4-3/4"
Length of Cut (Decimal Inch):
4.7500"
Overall Length (Inch):
7"
Overall Length (Decimal Inch):
7.0000"
Number of Flutes:
3
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Length (Inch):
2-1/4"
Shank Length (Decimal Inch):
2.2500"
Finish/Coating:
ZPLUS
Center Cutting:
Yes
Through Coolant:
No
