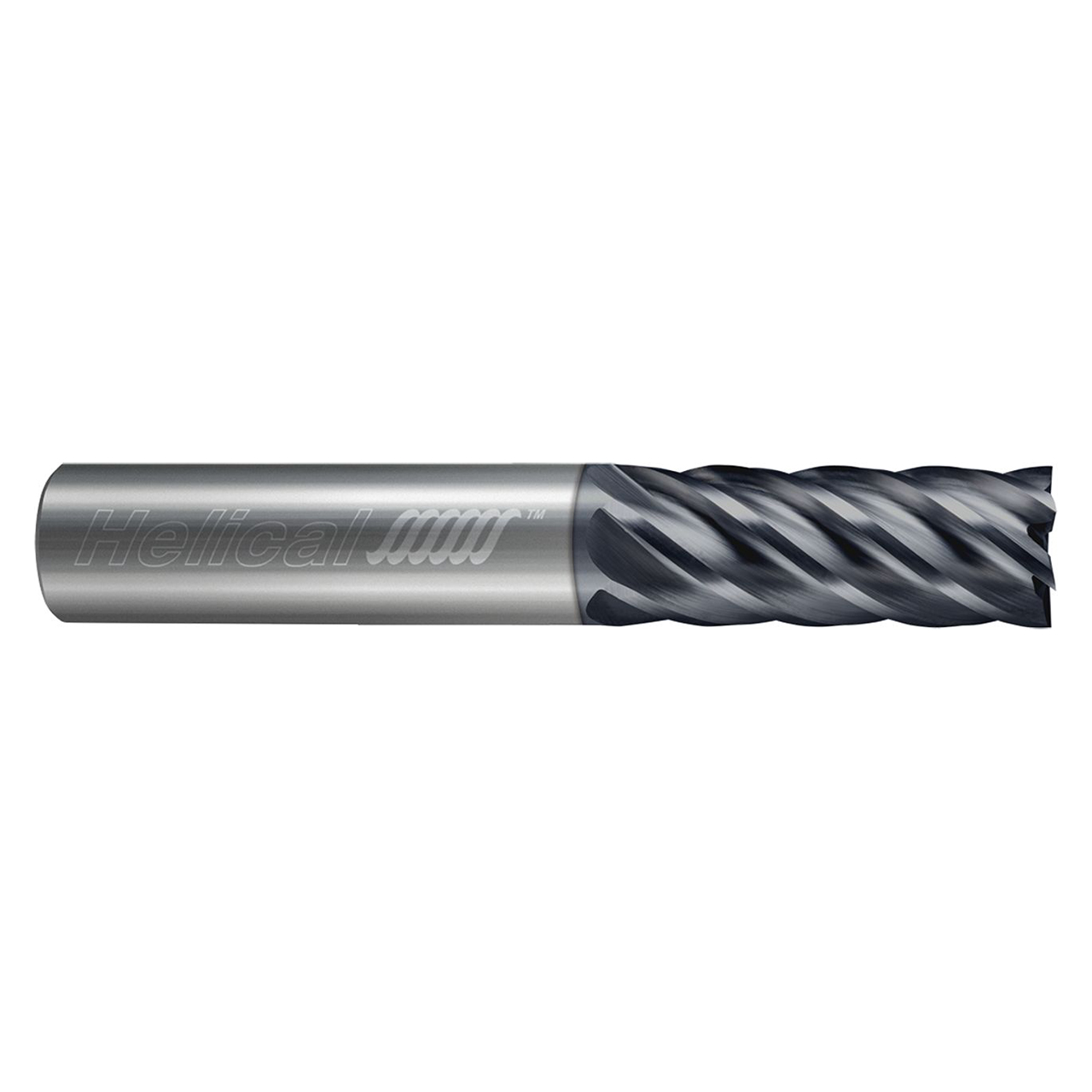

Utilize the HVTI-6, Helical Solutions' product line of tooling optimized for Titanium 6Al4V and other titanium alloys, to achieve exceptional performance in High Efficiency Milling (HEM).
Features:- Specially engineered for optimal performance in High Efficiency Milling (HEM) of Titanium 6Al4V and other titanium alloys
- Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- Not for use in traditional slotting and roughing toolpaths
- Center cutting
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Tool Number | 87265 |
| Cutter Diameter (Inch) | 0.7500" |
| Length of Cut (Inch) | 1.2500" |
| Overall Length (Inch) | 4.0000" |
| Corner Radius (Inch) | 0.1200" |
| No of Flutes | 6 |
| LOC Multiple | 1.6x |
| Shank Diameter (Inch) | 0.7500" |
| Coating | Aplus |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
3/4"
Cutter Diameter (Decimal Inch):
0.7500"
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Corner Radius (Decimal Inch):
0.1200"
Number of Flutes:
6
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Length (Inch):
2-3/4"
Shank Length (Decimal Inch):
2.7500"
Finish/Coating:
Aplus
Center Cutting:
Yes
Through Coolant:
No
interval quantity:
1
