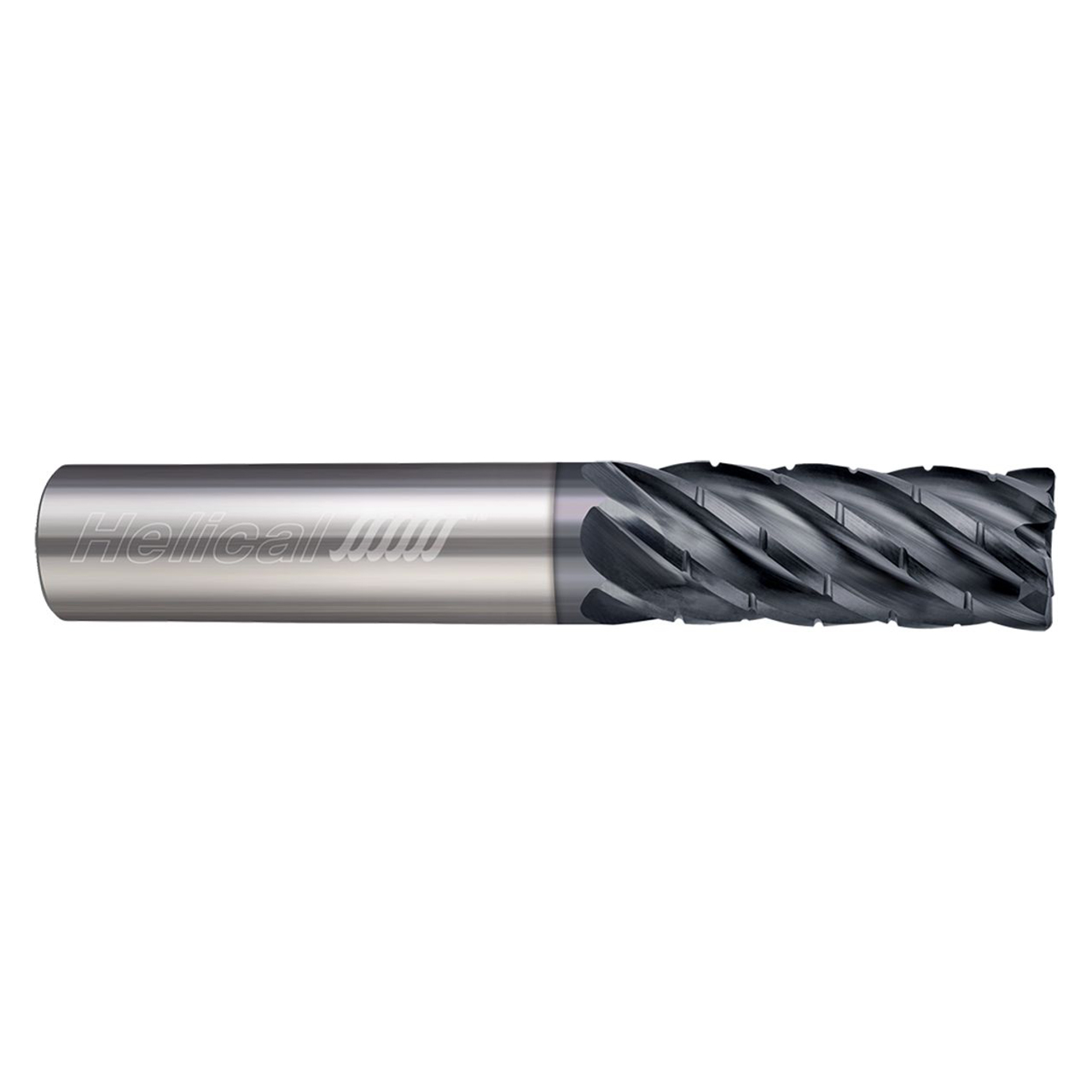

Helical Solutions 87424 | HEV-C-M-60750-R.125 0.7500" Diameter x 0.7500" Shank x 2.2500" LOC x 5.0000" OAL x 0.1250" Radius 6 Flute Aplus Coated Carbide Corner Radius End Mill

$354.00
Brand:
Helical Solutions
Cutter Diameter (Inch):
3/4"
Cutter Diameter (Decimal Inch):
0.7500"
Length of Cut (Inch):
2-1/4"
Length of Cut (Decimal Inch):
2.2500"
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Corner Radius (Inch):
1/8"
Corner Radius (Decimal Inch):
0.1250"
Number of Flutes:
6
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Length (Inch):
2-3/4"
Shank Length (Decimal Inch):
2.7500"
Finish/Coating:
Aplus
Center Cutting:
Yes
Through Coolant:
No
interval quantity:
1
SKU:
25215835
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

The HEV-7 is designed to withstand and excel in the toughest applications and materials. The high flute count and variable pitch geometry give this tool the strong core and extreme performance necessary for steels and titanium alloys.

Features:
  • Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, cast iron, titanium, and titanium alloys.
  • Engineered for excellent performance in High Efficiency Milling (HEM)
  • 7 flute variable pitch design for reduced harmonics and increased feed rates
  • End cutting geometry (non-center cutting)
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Tool Number87424
Cutter Diameter (Inch)0.7500"
Length of Cut (Inch)2.2500"
Overall Length (Inch)5.0000"
Corner Radius (Inch)0.1250"
No of Flutes6
LOC Multiple3x
Shank Diameter (Inch)0.7500"
CoatingAplus
