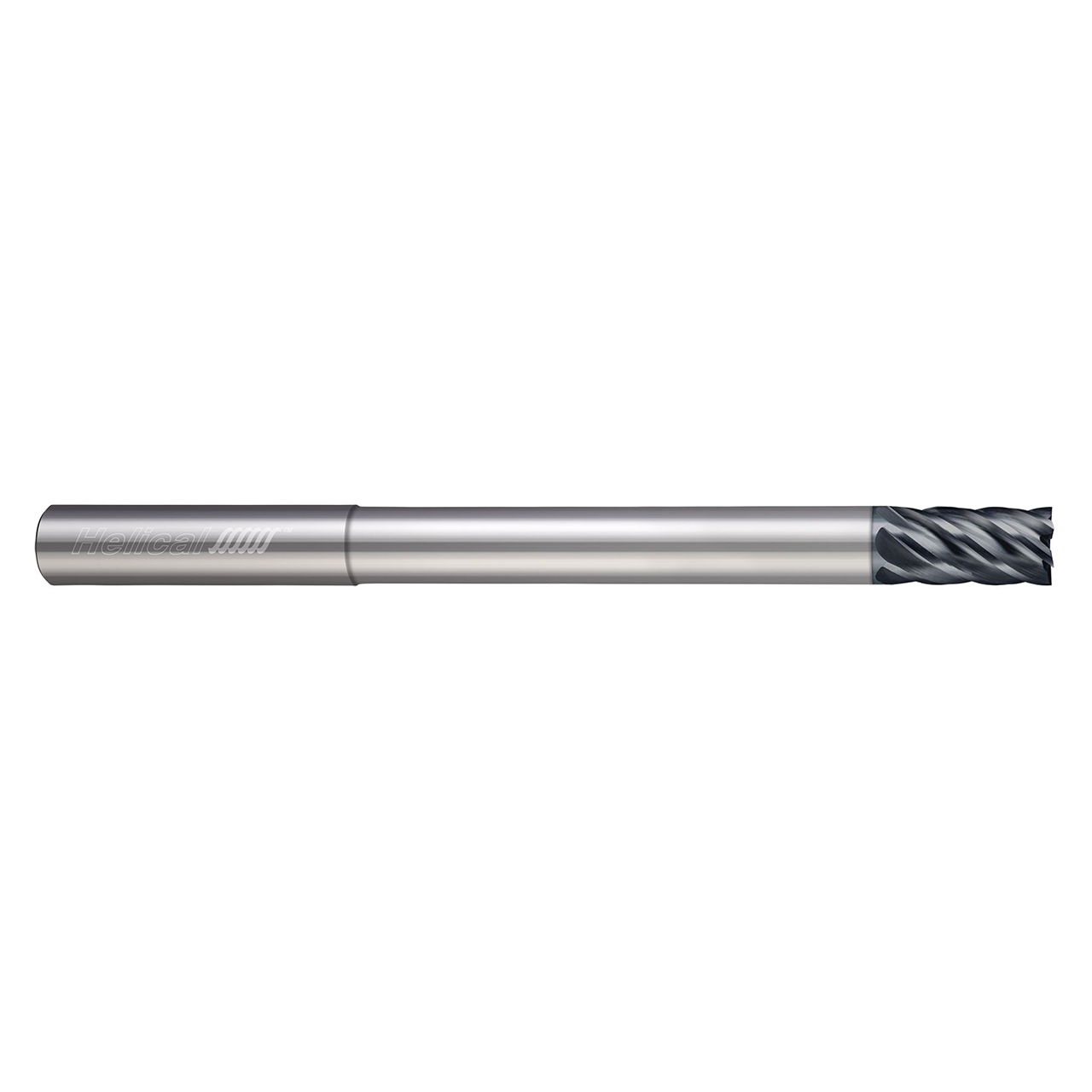

Helical Solutions 87596 | HEV-RN-S-60125 0.1250" Diameter x 0.1250" Shank x 0.1562" LOC x 2.0000" OAL 6 Flute Aplus Coated Carbide Square End Mill

$28.90
Brand:
Helical Solutions
Cutter Diameter (Inch):
1/8"
Cutter Diameter (Decimal Inch):
0.1250"
Neck Diameter (Decimal Inch):
0.1180"
Neck Diameter (mm):
3.00mm
Length of Cut (Inch):
5/32"
Length of Cut (Decimal Inch):
0.1562"
Overall Reach (Inch):
3/8"
Overall Reach (Decimal Inch):
0.3750"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Number of Flutes:
6
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Length (Inch):
1-5/8"
Shank Length (Decimal Inch):
1.6250"
Finish/Coating:
Aplus
Center Cutting:
Yes
Through Coolant:
No
interval quantity:
1
SKU:
25216007
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Engineered to provide outstanding performance and extended tool life in stainless steels, high temp alloys, and hardeded steels up to 65 Rc, these 6 Flute Square End Mills are specially designed to excel in long reach and deep pocketing applications.

Features:
  • Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc
  • Well-suited for increased wear resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
  • Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
  • 6 flute variable pitch design for reduced harmonics and increased feed rates
  • Reduced neck provides maximum strength in long reach and deep pocketing applications
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Tool Number87596
Cutter Diameter (Inch)0.1250"
Neck Diameter (Inch)0.1180"
Length of Cut (Inch)0.1562"
Overall Reach (Inch)0.3750"
Overall Length (Inch)2.0000"
No of Flutes6
LOC Multiple1.2x
Shank Diameter (Inch)0.1250"
CoatingAplus

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Helical Solutions
Cutter Diameter (Inch):
1/8"
Cutter Diameter (Decimal Inch):
0.1250"
Neck Diameter (Decimal Inch):
0.1180"
Neck Diameter (mm):
3.00mm
Length of Cut (Inch):
5/32"
Length of Cut (Decimal Inch):
0.1562"
Overall Reach (Inch):
3/8"
Overall Reach (Decimal Inch):
0.3750"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Number of Flutes:
6
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Length (Inch):
1-5/8"
Shank Length (Decimal Inch):
1.6250"
Finish/Coating:
Aplus
Center Cutting:
Yes
Through Coolant:
No
interval quantity:
1
