Product Specifications
| Manufacturer Part Number | 89073 |
| Cutter Diameter (Decimal Inch) | 0.187" |
| Cutter Diameter (Inch) | 3/16" |
| Length of Cut (Decimal Inch) | 0.250" |
| Length of Cut (Inch) | 1/4" |
| Overall Reach (Decimal Inch) | 1.101" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Number of Flutes | 3 |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Coating | NPLUS |
| Center Cutting | Yes |

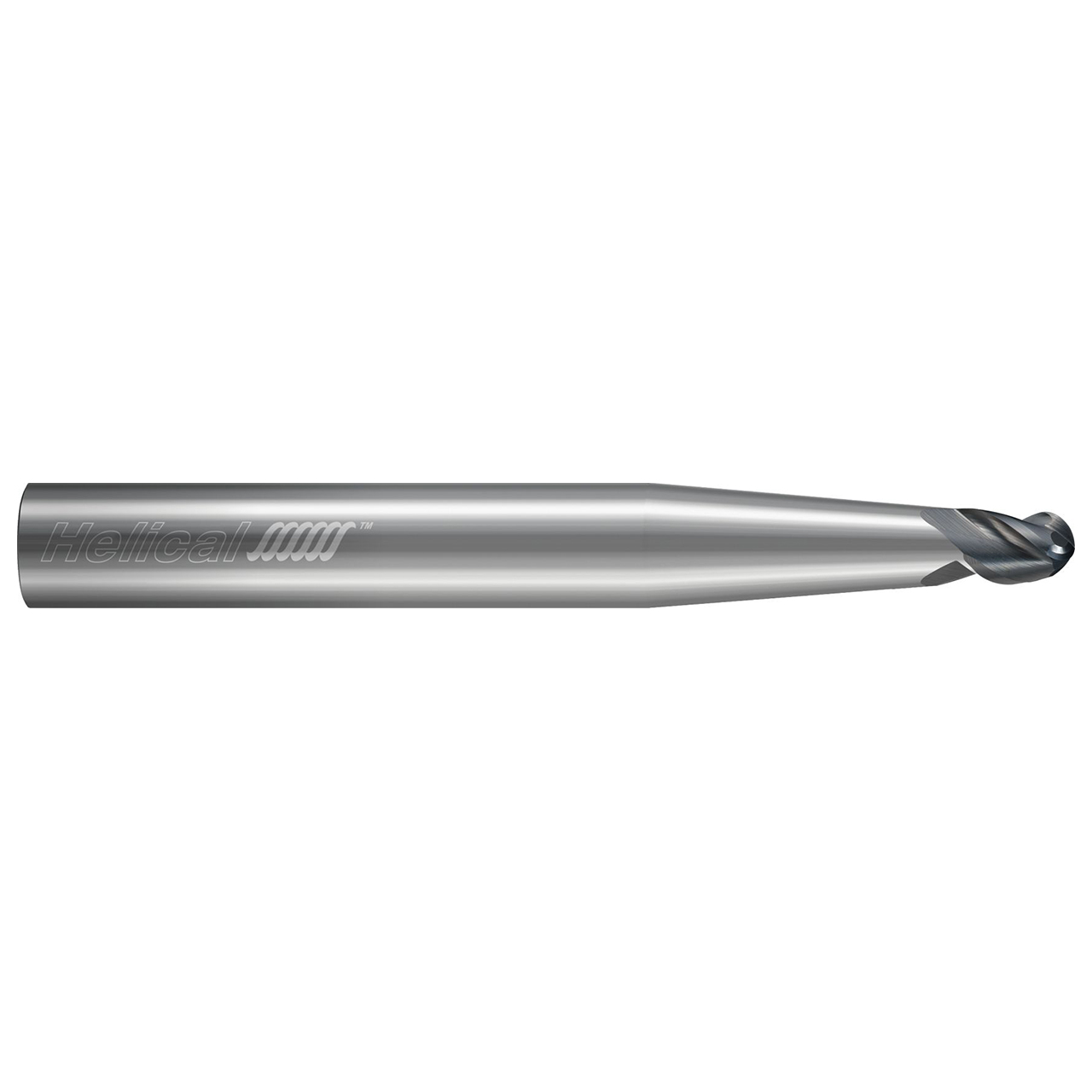

| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
3/16"
Cutter Diameter (Decimal Inch):
0.1870"
Cutter Diameter (mm):
4.75mm
Length of Cut (Inch):
1/4"
Length of Cut (Decimal Inch):
0.2500"
Length of Cut (mm):
6.35mm
Overall Reach (Inch):
1-10/99"
Overall Reach (Decimal Inch):
1.1010"
Overall Reach (mm):
27.97mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Number of Flutes:
3
Finish/Coating:
NPLUS Coated
