Product Specifications
| Manufacturer Part Number | 89100 |
| Cutter Diameter (Decimal Inch) | 0.250" |
| Cutter Diameter (Inch) | 1/4" |
| Radius (Decimal Inch) | 0.500" |
| Length of Cut (Decimal Inch) | 0.250" |
| Length of Cut (Inch) | 1/4" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (Inch) | 2" |
| Number of Flutes | 4 |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Coating | TPLUS |
| Center Cutting | Yes |

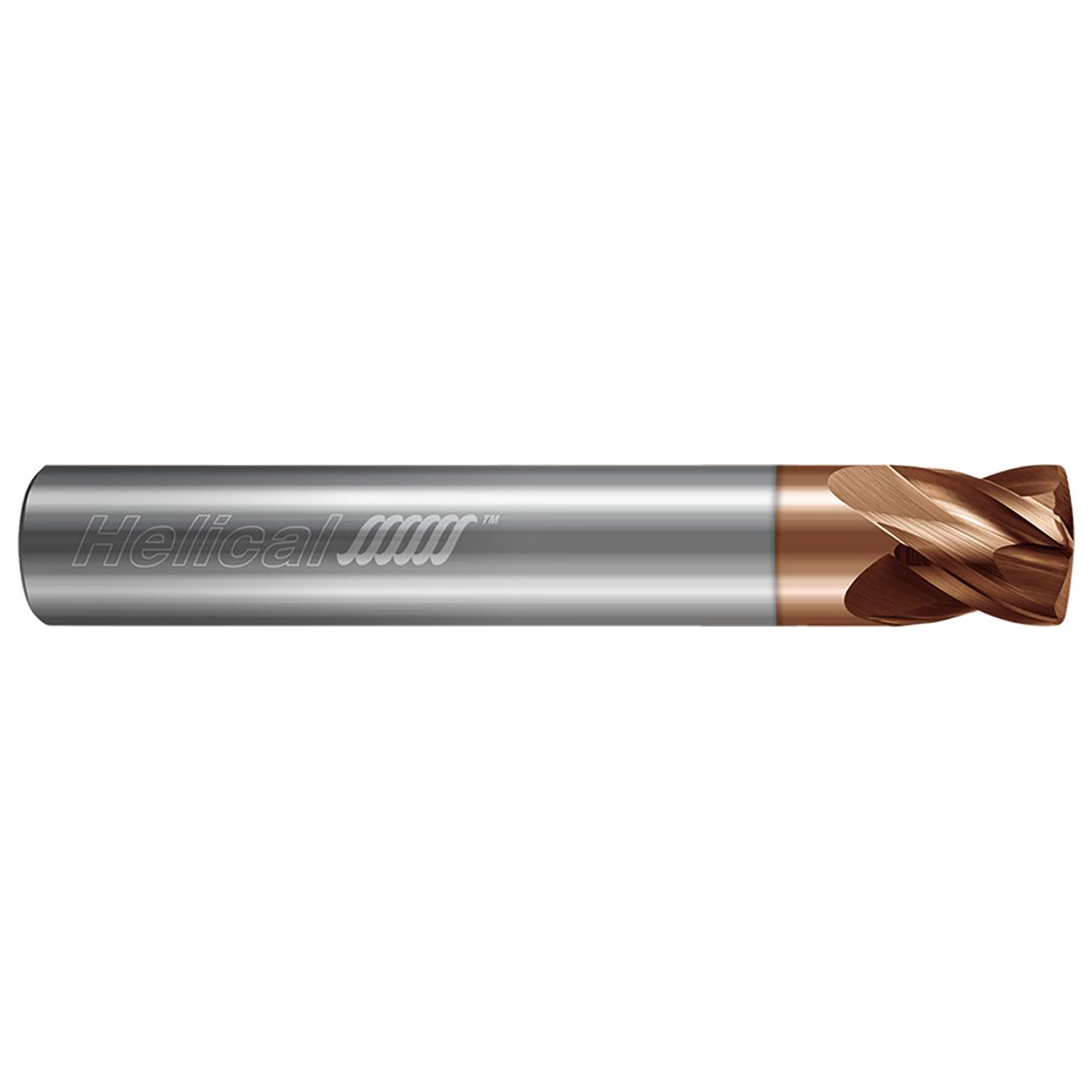

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
1/4";Cutter Diameter (Decimal Inch)=0.2500""
Cutter Diameter (mm):
6.35mm
Length of Cut (Inch):
1/4";Length of Cut (Decimal Inch)=0.2500""
Length of Cut (mm):
6.35mm
Radius )Inch):
0.5000 "
Radius (Inch):
1/2";Radius (mm)=12.70mm"
Overall Length (Inch):
2";Overall Length (Decimal Inch)=2.0000""
Overall Length (mm):
50.80mm
Shank Diameter (Inch):
1/4";Shank Diameter (Decimal Inch)=0.2500""
Shank Diameter (mm):
6.35mm
Number of Flutes:
4
Finish/Coating:
TPLUS Coated
